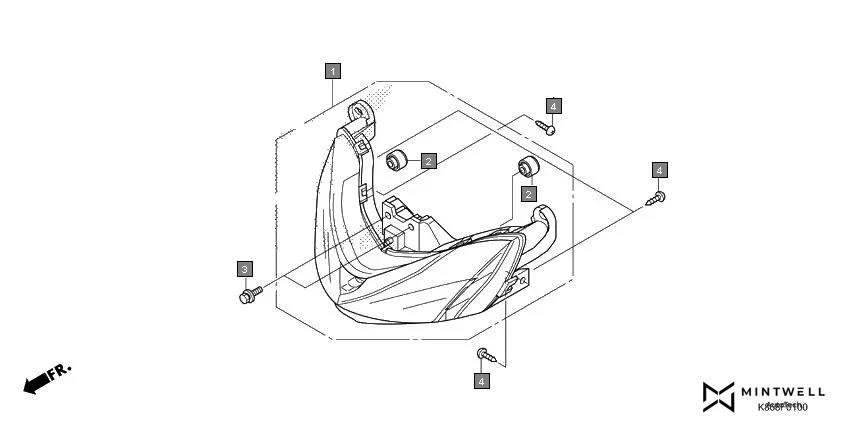

F-1 - HEADLIGHT
HONDA GRAZIA SCV125SK · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K86-D01 | HEADLIGHT ASSY.(LUMAX) | 1 | |
| 2 | 33113-MEE-D01 | PIPE, CP | 2 | |
| 3 | 93404-06014-00 | BOLT-WASHER, 6X14 | 2 | |
