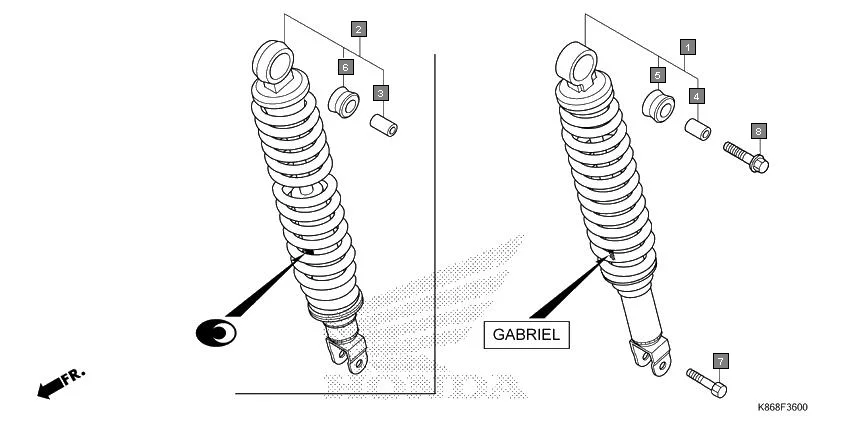

F-36 - REAR CUSHION
HONDA GRAZIA SCV125SJ · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-K24-G02 | CUSHION ASSY., RR.(GABRIEL) | 1 | |
| 2 | 52400-KWP-G01 | CUSHION ASSY., RR.(ENDURANCE). | 1 | |
| 3 | 52486-K23-902 | COLLAR, RUBBER BUSH(ENDURANCE) | 1 | |
| 4 | 52487-KWS-901 | COLLAR, RUBBER BUSH(GABRIEL) | 1 | |
| 5 | 52489-KWS-901 | BUSH, RUBBER(GABRIEL) | 1 | |
| 6 | 52495-K23-902 | BUSH, RUBBER(ENDURANCE) | 1 | |
| 7 | 92201-08032-0A | BOLT, FLANGE, 8 X32 | 1 | |
| 8 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 1 | |
