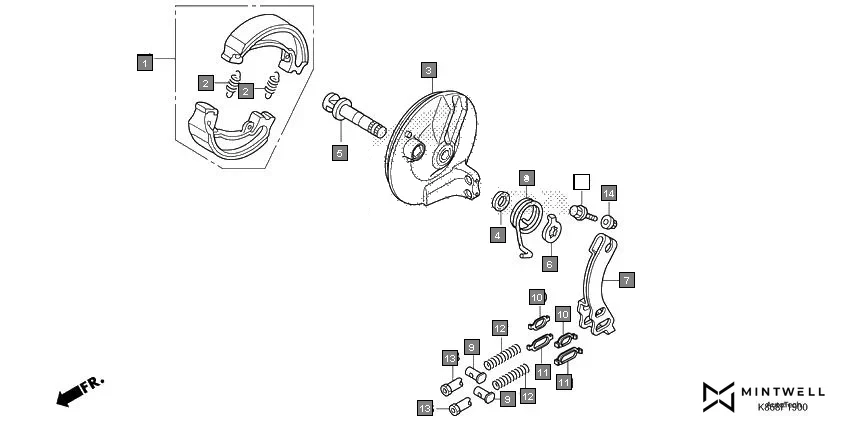

F-19 - FRONT BRAKE PANEL
HONDA GRAZIA SCV125SJ · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KWP-900 | SHOE SET, BRAKE(JB) | 1 | |
| 1 | 06430-KWP-D00 | SHOE SET, BRAKE(ASK) | 1 | |
| 2 | 45133-KPL-900 | SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) | 2 | |
| 3 | 45100-K86-D00 | PANEL COMP., FR. BRAKE | 1 | |
| 4 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 5 | 45141-KWP-D00 | CAM, FR. BRAKE (RR.) | 1 | |
| 6 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 7 | 45410-K86-D00 | ARM, FR. BRAKE | 1 | |
| 8 | 45435-KPL-900 | SPRING, BRAKE ARM RETURN | 1 | |
| 9 | 45453-K86-D00 | JOINT, BRAKE ARM | 2 | |
| 10 | 45454-K86-D00 | SLIDER A, JOINT | 2 | |
| 11 | 45455-K86-D00 | SLIDER B, JOINT | 2 | |
| 12 | 45456-KWP-910 | SPRING BRK CABLE END | 2 | |
| 13 | 45459-K86-D00 | NUT, BRAKE ADJUSTING | 2 | |
| 15 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 15 | 95702-06032-00 | BOLT, FLANGE, 6X32 | 1 | |
