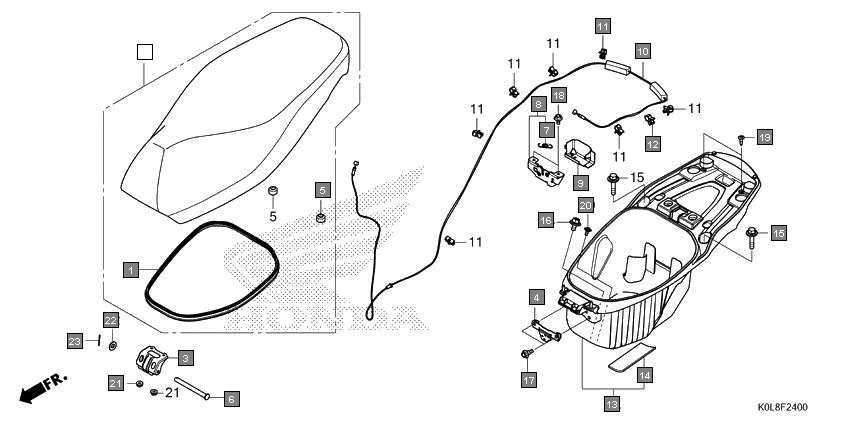

F-24-SEAT/LUGGAGE BOX
HONDAActiva125 SCV125L · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-K0L-D00 | RUBBER, SEAL | 1 | |
| 2 | 77200-K0L-601ZA | SEAT COMP.. DOUBLE *TYPE1* | 1 | |
| 3 | 77201-K0L-D00 | HINGE, SEAT | 1 | |
| 4 | 77203-KWP-H00 | STAY, HOOK LUGGAGE | 1 | |
| 5 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 6 | 77215-K24-900 | PIN, SEAT HINGE | 1 | |
| 7 | 77234-K0L-D00 | SPRING, SEAT LOCK | 1 | |
| 8 | 77235-K0L-D00 | CATCH COMP., SEAT | 1 | |
| 9 | 77239-K0L-D00 | COVER, SEAT CATCH | 1 | |
| 10 | 77240-K0L-601 | CABLE COMP,SEAT LOCK | 1 | |
| 10 | 77240-K0L-D01 | CABLE COMP., SEAT LOCK(HI-LEX) | 1 | |
| 11 | 77243-K0L-D01 | CLIP A, SEAT LOCK CABLE | 7 | |
| 12 | 77244-K0L-D01 | CLIP B, SEAT LOCK CABLE | 1 | |
| 13 | 81260-K0L-D00 | BOX ASSY., LUGGAGE | 1 | |
| 14 | 83507-K0L-D00 | INSULATOR, LUGGAGE BOX | 1 | |
| 15 | 90101-KWP-900 | BOLT-WASH 8X40 | 2 | |
| 16 | 90107-KWP-900 | BOLT WASH 8 X 16 | 1 | |
| 17 | 90112-KRP-900 | BOLT, FLANGE, 6X18 | 2 | |
| 18 | 90116-KVB-900 | BOLT, FLANGE, 6MM | 2 | |
| 19 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 20 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 1 | |
| 21 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 22 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 23 | 94201-16180 | PIN, SPLIT, 1.6X18 | 1 |
