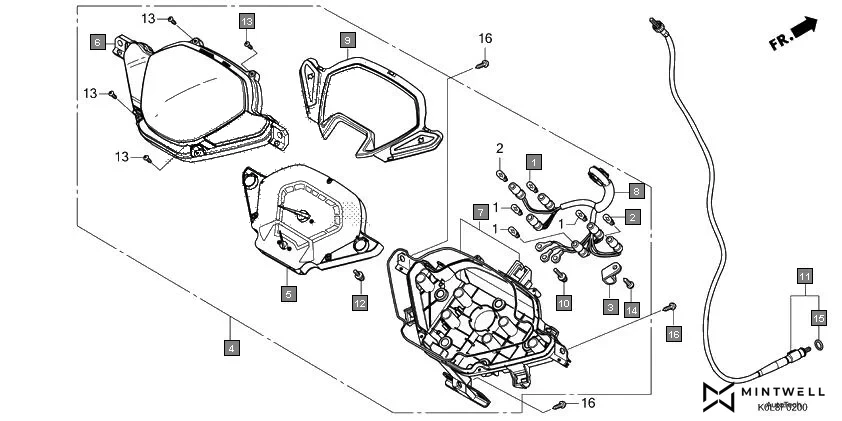

F-2-METER(SCV125-ID)
HONDAActiva125 SCV125L · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34908-KVE-900 | BULB, WEDGE BASE T10 (12V - 1.7 W) | 4 | |
| 2 | 34909-KVE-900 | BULB, WEDGE BASE (12V - 3 W) | 2 | |
| 3 | 37121-KV3-008 | CLAMP | 1 | |
| 4 | 37200-K0L-D01 | SPEEDOMETER ASSY.(KPH) | 1 | |
| 5 | 37210-K0L-D01 | METER COMP., SPEED & FUEL(KPH) | 1 | |
| 6 | 37211-K0L-D01 | LENS | 1 | |
| 7 | 37220-K0L-D01 | CASE ASSY., LOWER | 1 | |
| 8 | 37224-K0L-D01 | SOCKET COMP. | 1 | |
| 9 | 37302-K0L-D11 | REFLECTOR ASSY. | 1 | |
| 10 | 37305-KE5-008 | SCREW-WASHER, 3X22 | 3 | |
| 11 | 44830-KVT-940 | CABLE COMP., SPEEDOMETER | 1 | |
| 12 | 90035-166-008 | SCREW-WASHER, SPECIAL, 4X10 | 2 | |
| 13 | 90101-KY6-008 | SCREW, TAPPING, 3X14 | 4 | |
| 14 | 90109-MZ5-008 | SCREW, TAPPING, 4 X 14 | 1 | |
| 15 | 91352-GAZ-930 | O-RING 8.5X11.5 | 1 | |
| 16 | 93903-25380 | SCREW TAPPING 5X16 | 3 |
