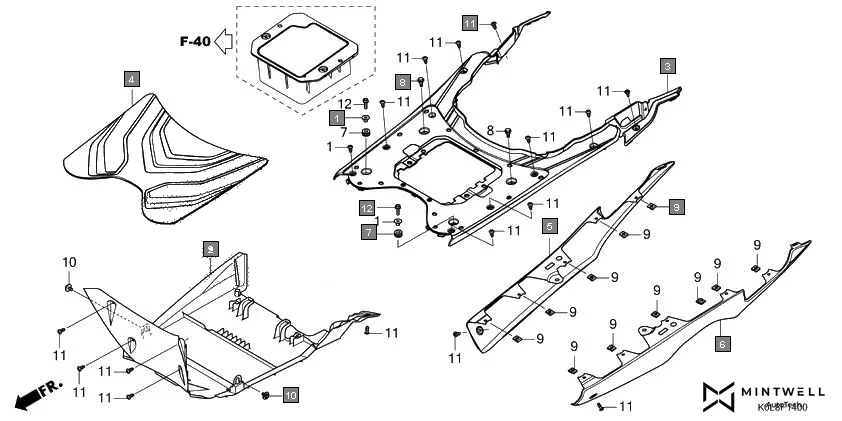

F-14 - FLOOR STEP/UNDER COVER
HONDA Activa125 SCV125L · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 2 | |
| 2 | 50621-K0L-D00ZA | COVER, UNDER *NH1* BLACK | 1 | |
| 3 | 64310-K0L-D00ZA | STEP, FLOOR *NH1* BLACK | 1 | |
| 4 | 64315-K0L-D10 | MAT, FLOOR | 1 | |
| 5 | 64320-K0L-P00ZZ | COVER, R. SIDE | 1 | |
| 6 | 64330-K0L-P00ZZ | COVER, L. SIDE | 1 | |
| 8 | 90101-K43-D00 | BOLT, SPECIAL, 6MM | 2 | |
| 12 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 2 | |
