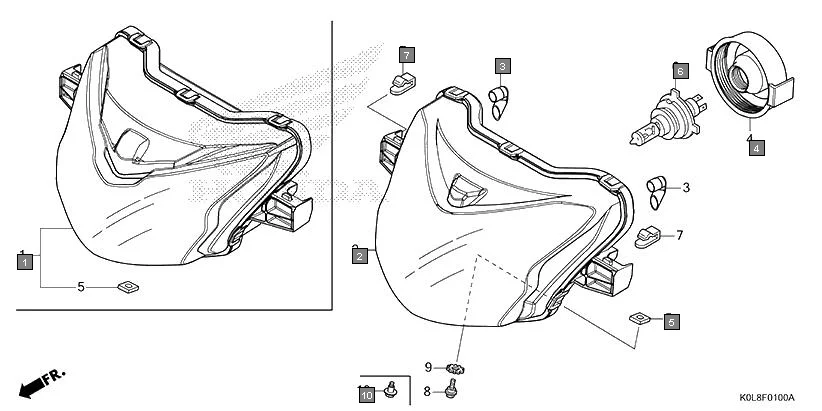

F-1 - HEADLIGHT
HONDA Activa125 SCV125L · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33100-K0L-D11 | HEADLIGHT ASSY.(LED) | 1 | |
| 2 | 33110-K0L-D01 | HEADLIGHT UNIT | 1 | |
| 3 | 33113-K0L-D01 | PIPE, CP | 2 | |
| 4 | 33126-K0L-D01 | COVER, RUBBER | 1 | |
| 5 | 33128-K0L-D01 | NUT, SPECIAL, 4X0.7 | 1 | |
| 6 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 6 | 34901-KTE-D01 | BULB, HEADLIGHT(12V 35/35W) (OSRAM) | 1 | |
| 7 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 10 | 90101-K1E-600 | BOLT, ADJUSTING | 1 | |
