OEM Part
OEM Part
50100-K24-P10ZZ
BODY COMP., FRAME
Qty Required: 1
Ref #3 in Assembly
Part of Assembly

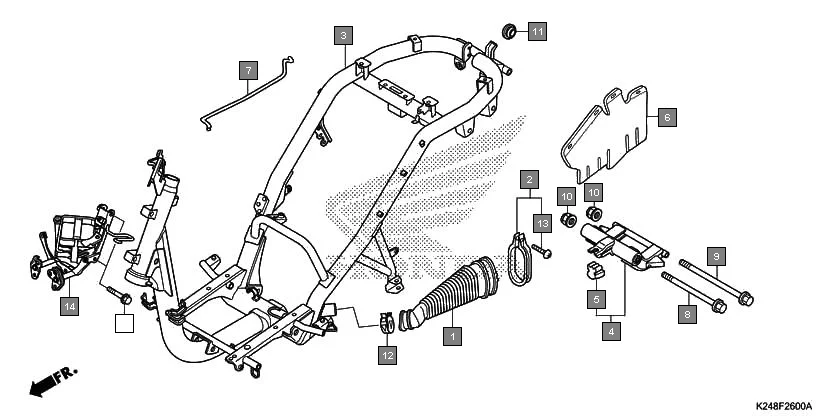

F-26
FRAME BODY
18 parts in this assembly
Assembly Diagram
Ref #3
Supported Vehicles2
Related Parts
11345-KVT-940
DUCT, L. COVER
11346-KCW-870
BAND, L. COVER. DUCT
50100-K24-P00ZZ
BODY COMP., FRAME
50350-K24-900
LINK ASSY., ENGINE HANGER
50352-GW0-730
RUBBER, LINK STOPPER
80102-KWP-900
PLATE, FRAME BODY SPLASH GUARD
