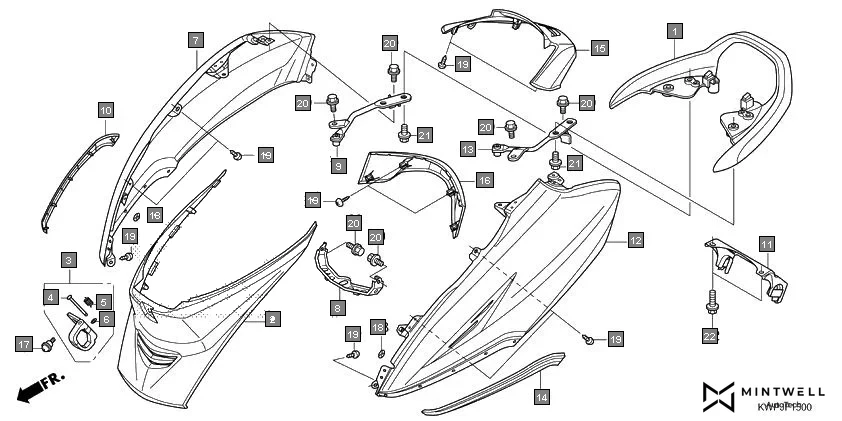

F-15-BODY COVER
HONDAActiva SCV110J · 42 parts
Parts in This Assembly (42)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77300-KWP-D00ZA | GRIP, RR. *NH35M* CLOUD SILVER METALLIC | 1 | |
| 2 | 80151-KWP-H00ZA | COVER, CENTER *NH1* BLACK | 1 | |
| 3 | 81132-K24-G00 | HOOK, LUGGAGE | 1 | |
| 4 | 81136-KTF-670 | PIN, HOOK | 1 | |
| 5 | 81137-KTF-670 | SPRING, HOOK | 1 | |
| 6 | 81138-KTF-670 | CIRCLIP | 1 | |
| 7 | 83500-KWP-P20ZZ | COVER COMP., R. BODY | 1 | |
| 8 | 83510-KWP-P10ZZ | STAY, FR. BODY COVER | 1 | |
| 9 | 83511-KWP-P10ZZ | PIPE, R. GRIP SUPPORT | 1 | |
| 10 | 83520-KWP-F01 | MOUL, R. BODY COVER | 1 | |
| 11 | 83560-KWP-F00 | HINGE, BODY COVER | 1 | |
| 12 | 83600-KWP-P20ZZ | COVER COMP., L. BODY | 1 | |
| 13 | 83611-KWP-P10ZZ | PIPE, L. GRIP SUPPORT | 1 | |
| 14 | 83620-KWP-F01 | MOUL, L. BODY COVER | 1 | |
| 15 | 83750-KWP-F01ZA | COVER,RR.CENTER*YR329M* MAJESTIC BROWN METALLIC | 1 | |
| 15 | 83750-KWP-F01ZC | COVER, RR. CENTER *NH1* BLACK | 1 | |
| 15 | 83750-KWP-F01ZD | COVER, RR. CENTER *NHB63P*..PEARL AMAZING WHITE | 1 | |
| 15 | 83750-KWP-F01ZF | COVER, RR. CENTER *B220M* TRANCE BLUE METALLIC | 1 | |
| 15 | 83750-KWP-F01ZK | COVER, RR. CENTER *Y230M* DAZZLE YELLOW METALLIC | 1 | |
| 15 | 83750-KWP-F01ZL | COVER, RR. CENTER *R382P* PEARL SPARTAN RED | 1 | |
| 15 | 83750-KWP-F01ZH | COVER, RR. CENTER*NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 15 | 83750-KWP-F01ZJ | COVER, RR. CENTER*NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 15 | 83750-KWP-F01ZN | COVER, RR. CENTER *NHC41P* PEARL PRECIOUS WHITE | 1 | |
| 15 | 83750-KWP-F01ZP | COVER, RR. CENTER *YR367M* MAJESTIC BROWN METALLIC 2 | 1 | |
| 15 | 83750-KWP-F01ZQ | COVER, RR. CENTER *NHC40M* MAT SELENE SILVER METALLIC 2 | 1 | |
| 16 | 83751-KWP-F00ZN | COVER, RR. CENTER LOWER *NHC41P* PEARL PRECIOUS WHITE | 1 | |
| 16 | 83751-KWP-F00ZH | COVER, RR. CENTER LOWER *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 16 | 83751-KWP-F00ZJ | COVER, RR. CENTER LOWER *NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 16 | 83751-KWP-F00ZK | COVER, RR. CENTER LOWER *Y230M* DAZZLE YELLOW METALLIC | 1 | |
| 16 | 83751-KWP-F00ZL | COVER, RR. CENTER LOWER *R382P* PEARL SPARTAN RED | 1 | |
| 16 | 83751-KWP-F00ZA | COVER, RR. CENTER LOWER *YR329M* MAJESTIC BROWN METALLIC | 1 | |
| 16 | 83751-KWP-F00ZC | COVER, RR. CENTER LOWER *NH1* BLACK | 1 | |
| 16 | 83751-KWP-F00ZD | COVER, RR. CENTER LOWER *NHB63P* PEARL AMAZING WHITE | 1 | |
| 16 | 83751-KWP-F00ZF | COVER, RR. CENTER LOWER *B220M* TRANCE BLUE METALLIC | 1 | |
| 16 | 83751-KWP-F00ZP | COVER, RR. CENTER LOWER *YR367M* MAJESTIC BROWN METALLIC 2 | 1 | |
| 16 | 83751-KWP-F00ZQ | COVER, RR. CENTER LOWER *NHC40M* MAT SELENE SILVER METALLIC 2 | 1 | |
| 17 | 90102-GB2-720 | SCREW, PAN, 5X16 | 2 | |
| 18 | 90302-KWP-E00 | NUT, PUSH, 3MM | 10 | |
| 19 | 93903-34380 | SCREW, TAPPING, 4X12 | 14 | |
| 20 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 6 | |
| 21 | 95701-08012-08 | BOLT, FLANGE, 8X12 | 4 | |
| 22 | 95701-10020-08 | BOLT, FLANGE, 10X20 | 2 |
