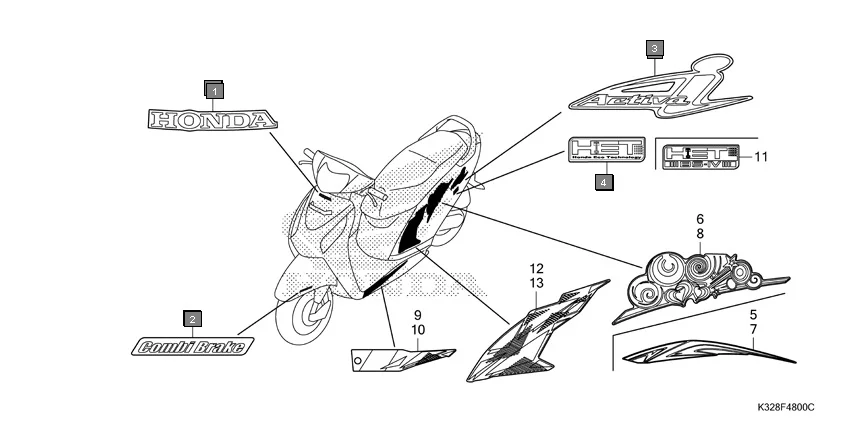

F-48 - MARK
HONDA Activa i SCV110HH · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86101-K32-900ZA | MARK, HONDA(75MM)*TYPE2* | 1 | |
| 1 | 86101-K32-900ZB | MARK, HONDA(75MM)*TYPE1* | 1 | |
| 2 | 86611-K32-900ZA | MARK(COMBI BRAKE)*TYPE2* | 1 | |
| 2 | 86611-K32-900ZB | MARK(COMBI BRAKE)*TYPE1* | 1 | |
| 3 | 86832-K32-900ZA | MARK, BODY COVER *TYPE1* | 2 | |
| 4 | 86833-KWP-D00ZA | MARK, HET *TYPE1* | 1 | |
