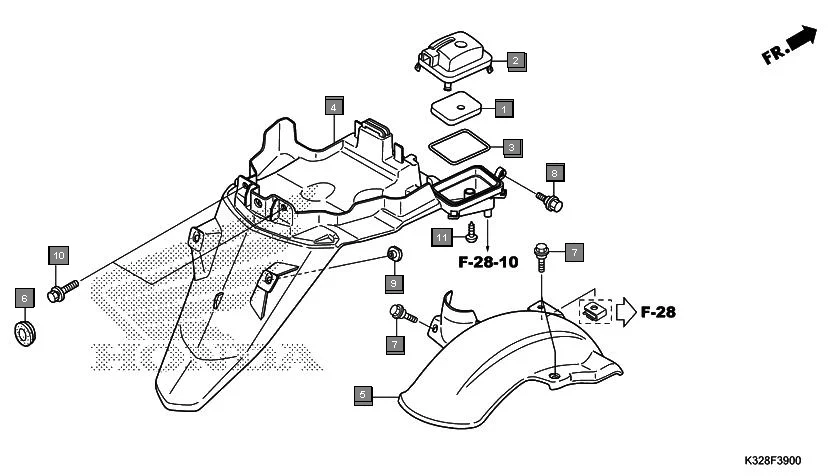

F-39 - REAR FENDER
HONDA Activa i SCV110HH · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18805-KPL-900 | ELEMENT, SUB AIR CLEANER | 1 | |
| 2 | 18807-KPL-900 | COVER, SUB AIR CLEANER | 1 | |
| 3 | 18812-KPL-900 | SEAL, SUB AIR CLEANER | 1 | |
| 4 | 80105-K32-900 | FENDER, RR. | 1 | |
| 5 | 80107-K32-900 | FENDER, RR. INNER | 1 | |
| 6 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 1 | |
| 9 | 90311-KTE-910 | NUT REAR FENDER | 2 | |
