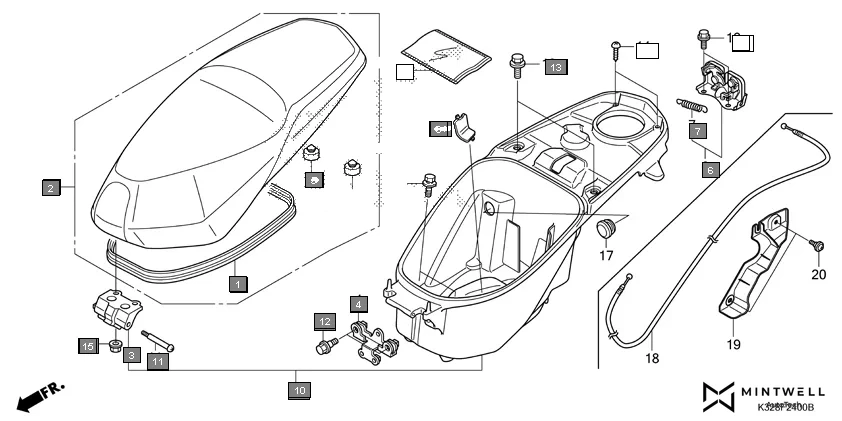

F-24 - SEAT/LUGGAGE BOX
HONDA Activa i SCV110HH · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-KZK-900 | RUBBER, SEAL | 1 | |
| 2 | 77200-K32-901ZA | SEAT COMP., DOUBLE *TYPE1* | 1 | |
| 3 | 77201-KWP-900 | HINGE SEAT | 1 | |
| 4 | 77203-KWP-900 | STAY, HOOK LUGGAGE | 1 | |
| 5 | 77206-KG8-900 | RUBBER, SEAT SETTING | 2 | |
| 6 | 77235-KWP-900 | SEAT CATCH COMP | 1 | |
| 7 | 77236-GBL-000 | SPRING SEAT CATCH | 1 | |
| 8 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 9 | 81255-KZK-900 | COVER, CARBURETOR MAINTENANCE | 1 | |
| 10 | 81260-K32-900 | BOX ASSY., LUGGAGE | 1 | |
| 11 | 90105-KTP-900 | PIN, HINGE | 1 | |
| 12 | 90112-KRP-900 | BOLT, FLANGE, 6X18 | 2 | |
| 13 | 93404-06012-07 | BOLT-WASHER, 6X12 | 4 | |
| 14 | 93903-34480 | SCREW, TAPPING, 4X 16 | 2 | |
