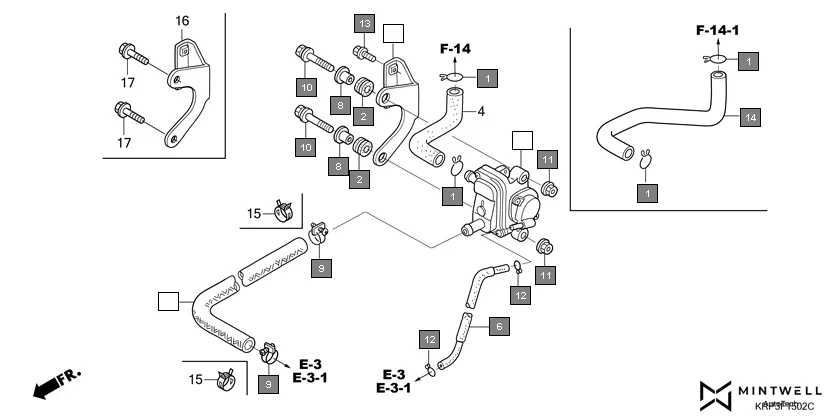

F-15-2 - AIR SUCTION VALVE(2)
HONDA Aviator SCV110GA · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17316-611-000 | CLIP, BREATHER TUBE | 2 | |
| 2 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 3 | 18600-KPL-841 | VALVE ASSY., AIR SUCTION | 1 | |
| 5 | 18652-KVT-900 | HOSE, AIR INJECTION CONTROL VALVE | 1 | |
| 6 | 18653-KPL-840 | TUBE, ASV, VACCUM | 1 | |
| 7 | 50142-KPL-840 | STAY, USV | 1 | |
| 8 | 90501-KC2-750 | WASHER, REGULATOR SETTING | 2 | |
| 9 | 91462-KM7-910 | CLIP, TUBE | 2 | |
| 10 | 93404-06030-08 | BOLT WASH 6X30 | 2 | |
| 11 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 12 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 13 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
| 14 | 18651-KVT-900 | TUBE, AIR INJECTION CONTROL VALVE | 1 | |
