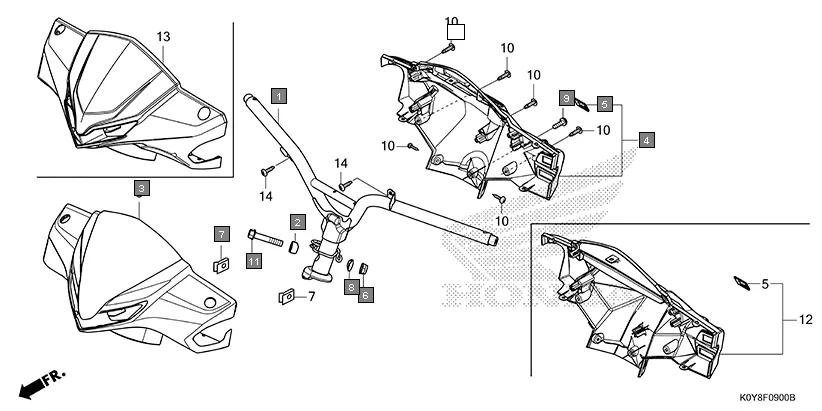

F-9 - STEERING HANDLE/HANDLE COVER
HONDA Dio SCV110FM · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-K0Y-D00 | HANDLE COMP., STEERING | 1 | |
| 2 | 53124-KWP-900 | COLLAR HANDLE SET | 1 | |
| 3 | 53210-K0Y-D00ZC | COVER SET, FR. HANDLE(WL) *TYPE5* | 1 | |
| 3 | 53210-K0Y-D00ZA | COVER SET, FR. HANDLE(WL) *TYPE8* | 1 | |
| 3 | 53210-K0Y-D00ZR | COVER SET, FR. HANDLE(WL)*TYPE9* | 1 | |
| 4 | 53250-K0Y-D00ZA | COVER COMP., HANDLE RR. *NH1* BLACK | 1 | |
| 5 | 86150-KWS-601 | EMBLEM, PRODUCT(SJS) | 1 | |
| 8 | 90502-KWP-900 | COLLAR B HNDL SET | 1 | |
| 9 | 93891-05016-07 | SCREW WASH 5X16 | 1 | |
