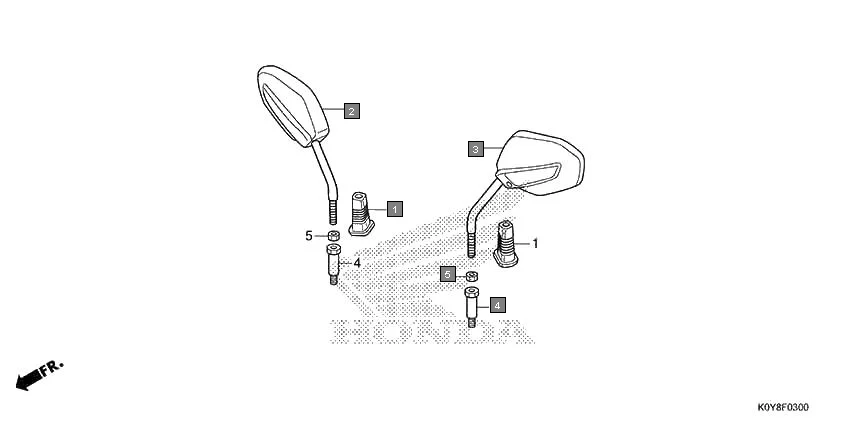

F-3 - MIRROR
HONDA Dio SCV110FM · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88113-KRP-N40 | CAP, LOCK NUT | 2 | |
| 2 | 88210-KZK-E01 | MIRROR COMP., R. | 1 | |
| 3 | 88220-KZK-E01 | MIRROR COMP., L. | 1 | |
| 4 | 90103-K24-H00 | BOLT, ADAPTER, 8MM | 2 | |
| 5 | 90201-KV3-680 | NUT, HEX., 8MM(L.H.) | 2 | |
