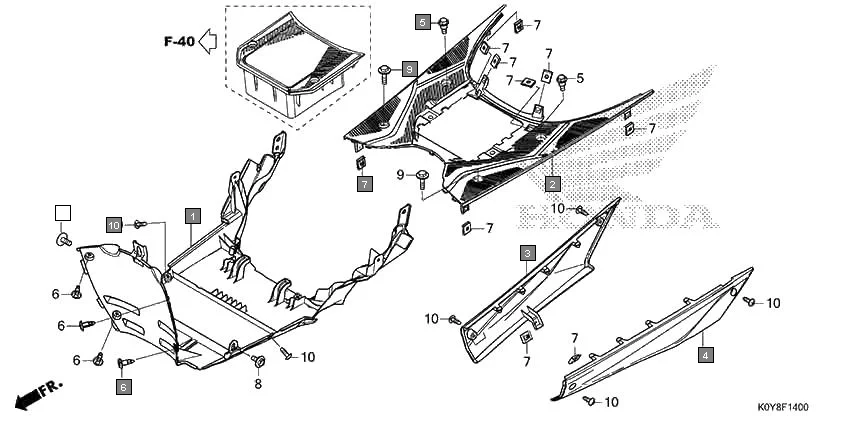

F-14 - FLOOR STEP
HONDA Dio SCV110FM · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-K0Y-D00 | COVER, UNDER | 1 | |
| 2 | 64310-K0Y-D00 | STEP, FLOOR | 1 | |
| 3 | 64320-K0Y-D00ZD | COVER, R. FLOOR SIDE *NH1* BLACK | 1 | |
| 4 | 64330-K0Y-D00ZD | COVER, L. FLOOR SIDE *NH1* BLACK | 1 | |
| 5 | 90101-K43-D00 | BOLT, SPECIAL, 6MM | 2 | |
| 6 | 90116-SP0-003 | CLIP, BUMPER SEAL | 4 | |
| 7 | 90344-KRP-900 | NUT CLIP 5MM | 10 | |
| 8 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 2 | |
| 9 | 93404-06025-07 | BOLT-WASHER, 6X25 | 2 | |
| 10 | 93903-25380 | SCREW TAPPING 5X16 | 6 | |
