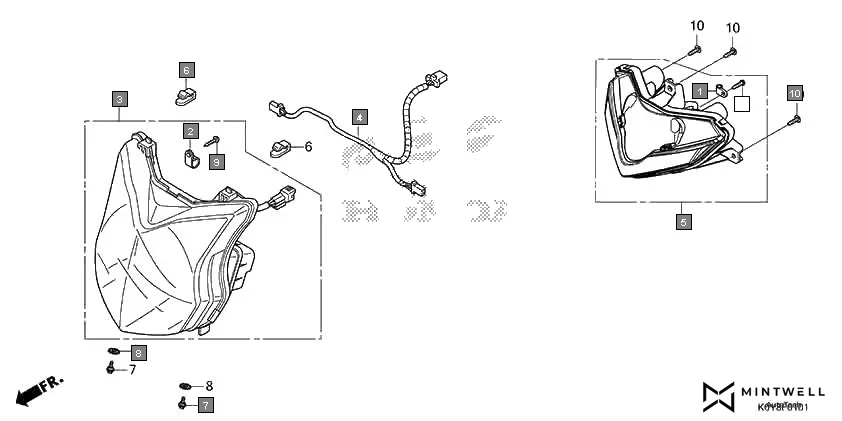

F-1-1 - HEADLIGHT(SCV110F/FB-2ID)
HONDA Dio SCV110FM · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32920-KVT-901 | CLIP A, HARNESS | 1 | |
| 2 | 32920-KZK-E01 | CLIP, HARNESS | 1 | |
| 3 | 33110-K0Y-D11 | HEADLIGHT UNIT | 1 | |
| 4 | 33120-KZK-E01 | SUB CORD, HEADLIGHT | 1 | |
| 5 | 33180-K0Y-D01 | LIGHT ASSY., POSITION | 1 | |
| 6 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 7 | 90103-KVH-900 | BOLT, ADJUST | 2 | |
| 8 | 90307-GW3-980 | WASHER, LOCK, 6MM | 2 | |
| 9 | 93901-32310 | SCREW, TAPPING, 3X12 | 1 | |
| 10 | 93903-24410 | SCREW, TAPPING, 4X16 | 3 | |
| 11 | 93913-14120 | SCREW, TAPPING, 4X10 | 1 | |
