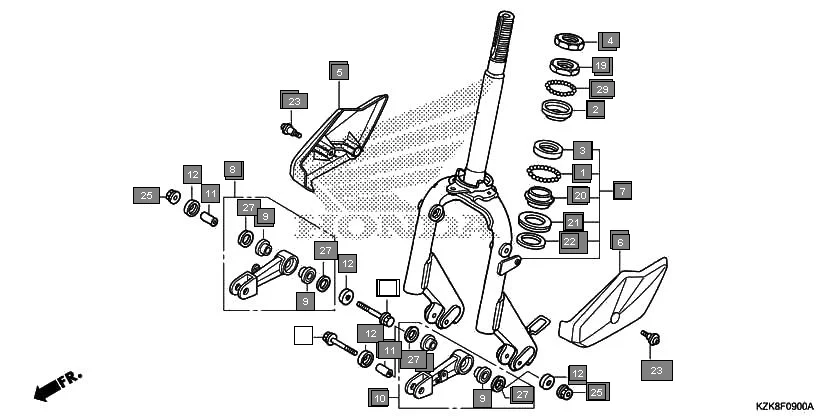

F-9 - FRONT FORK
HONDA Dio SCV110FH · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 96211-08000 | BALL STEEL 8 MM | 19 | |
| 2 | 50301-KEM-900 | RACE, UP STRG., BALL | 1 | |
| 3 | 50302-268-010 | RACE, STEERING BOTTOM BALL | 1 | |
| 4 | 50306-KPL-900 | NUT, STRG. STEM, LOCK | 1 | |
| 5 | 51103-KZK-900 | COVER, R. PIVOT | 1 | |
| 6 | 51104-KZK-900 | COVER, L. PIVOT | 1 | |
| 7 | 51110-KZK-900 | FORK SUB ASSY., FR. | 1 | |
| 8 | 51215-KZK-900 | ARM SET, R. PIVOT | 1 | |
| 9 | 51314-KZK-901 | BUSH, PIVOT ARM | 4 | |
| 10 | 51315-KZK-900 | ARM SET, L. PIVOT | 1 | |
| 11 | 51334-KPL-900 | COLLAR, ARM, PIVOT | 2 | |
| 12 | 51336-KZK-900 | CAP, FR. FORK DISTANCE COLLAR | 4 | |
| 19 | 53211-KEM-900 | RACE, STRG. TOP CONE | 1 | |
| 20 | 53212-250-010 | RACE, STRG. BOTTOM CONE | 1 | |
| 21 | 53214-250-000 | DUST, SEAL STRG. (HEAD) | 1 | |
| 22 | 53215-KPL-900 | WASHER, STRG. HEAD DUST SEAL | 1 | |
| 23 | 90102-KPL-900 | SCREW, FORK COVER | 2 | |
| 25 | 90309-KTE-911 | NUT,FLG PT 8MM | 2 | |
| 27 | 91251-GZ5-003 | SEAL, PIVOT ARM | 4 | |
| 28 | 95801-08055-08 | BOLT, FLANGE, 8 X 55 | 2 | |
| 28 | 95802-08055-08 | BOLT, FLANGE, 8X55 | 2 | |
| 29 | 96211-05000 | BALL, STEEL #5 | 26 | |
