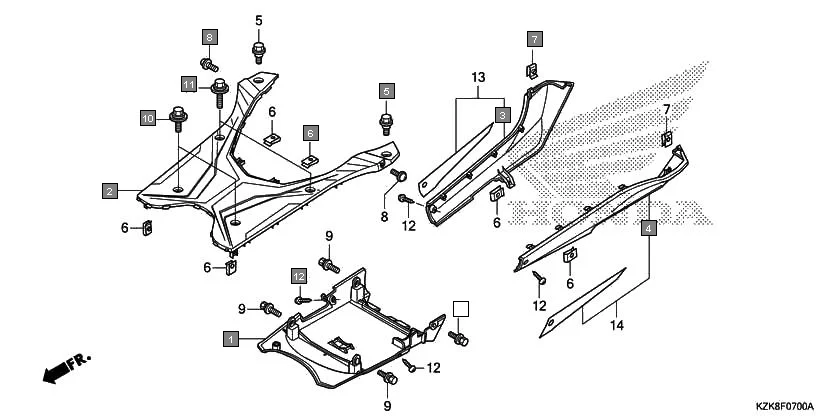

F-7 - FLOOR STEP
HONDA Dio SCV110FH · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50621-KZK-900 | COVER, UNDER | 1 | |
| 2 | 64310-KZK-900ZA | STEP, FLOOR *NH1* BLACK | 1 | |
| 3 | 64320-KZK-900ZA | COVER, R. FLOOR SIDE *NH411M* FORCE SILVER METALLIC | 1 | |
| 3 | 64320-KZK-900ZB | COVER, R. FLOOR SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 3 | 64320-KZK-900ZC | COVER, R. FLOOR SIDE *NH105* MAT BLACK(#15-#20) | 1 | |
| 4 | 64330-KZK-900ZA | COVER, L. FLOOR SIDE *NH411M* FORCE SILVER METALLIC | 1 | |
| 4 | 64330-KZK-900ZB | COVER, L. FLOOR SIDE *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 4 | 64330-KZK-900ZC | COVER, L. FLOOR SIDE *NH105* MAT BLACK(#15-#20) | 1 | |
| 6 | 90344-KRP-900 | NUT CLIP 5MM | 6 | |
| 9 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 4 | |
| 10 | 93404-06025-07 | BOLT-WASHER, 6X25 | 2 | |
| 11 | 93404-06032-07 | BOLT-WASHER, 6X32 | 2 | |
