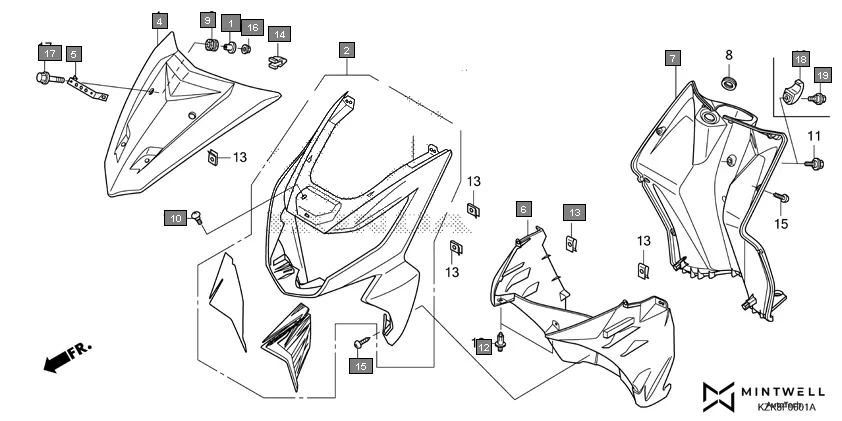

F-6-1 - FRONT COVER(2)
HONDA Dio SCV110FH · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61104-428-730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 2 | |
| 2 | 64200-KZK-C30ZA | COVER SET, FR.(WL) *TYPE1* | 1 | |
| 2 | 64200-KZK-E40ZA | COVER SET, FR.(WL) *TYPE1* | 1 | |
| 4 | 64301-KZK-D20ZD | COVER, FR. TOP MAT AXIS GRAY METALLIC *NH303M* | 1 | |
| 5 | 64303-KZK-D20 | STAY, FR. NUMBER PLATE | 1 | |
| 6 | 64305-KZK-D20ZD | COVER, FR. LOWER BLACK *NH1* | 1 | |
| 7 | 81131-KZK-E00ZA | COVER, INNER *NH1* BLACK | 1 | |
| 9 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 10 | 90109-KTL-740 | BOLT, FAIRING SETTING | 2 | |
| 12 | 90116-SP0-003 | CLIP, BUMPER SEAL | 2 | |
| 13 | 90344-KRP-900 | NUT CLIP 5MM | 8 | |
| 14 | 90666-SDA-A01 | CLIP , SNAP FIT (PO) | 1 | |
| 15 | 93903-25380 | SCREW TAPPING 5X16 | 12 | |
| 16 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 17 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 18 | 81132-KWP-H00ZA | HOOK, LUGGAGE *NH1* BLACK | 1 | |
| 19 | 90107-KVB-900 | BOLT, SPECIAL, 6MM | 1 | |
