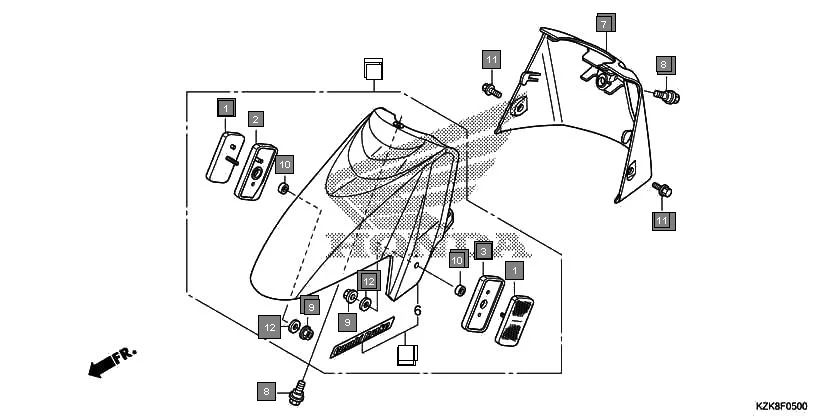

F-5 - FRONT FENDER
HONDA Dio SCV110FH · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KZK-951 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 33762-KZK-950 | MOUNT, R. SIDE REFLECTOR | 1 | |
| 3 | 33862-KZK-950 | MOUNT, L. SIDE REFLECTOR | 1 | |
| 4 | 61000-KZK-910ZA | FENDER SET, FR.(WL) *TYPE5* | 1 | |
| 4 | 61000-KZK-910ZB | FENDER SET, FR.(WL) *TYPE4* | 1 | |
| 4 | 61000-KZK-910ZC | FENDER SET, FR.(WL) *TYPE3* | 1 | |
| 4 | 61000-KZK-910ZD | FENDER SET, FR.(WL) *TYPE2* | 1 | |
| 4 | 61000-KZK-910ZE | FENDER SET, FR.(WL) *TYPE1* | 1 | |
| 5 | 61000-KZK-960ZA | FENDER SET, FR.(WL) *TYPE5* | 1 | |
| 5 | 61000-KZK-960ZB | FENDER SET, FR.(WL) *TYPE4* | 1 | |
| 5 | 61000-KZK-960ZC | FENDER SET, FR.(WL) *TYPE3* | 1 | |
| 5 | 61000-KZK-960ZD | FENDER SET, FR.(WL) *TYPE2* | 1 | |
| 5 | 61000-KZK-960ZE | FENDER SET, FR.(WL) *TYPE1* | 1 | |
| 7 | 61110-KZK-900ZA | FENDER B, FR. *NH1* BLACK | 1 | |
| 8 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 9 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 2 | |
| 10 | 90312-KZK-950 | COLLAR, 9.5X5.5 | 2 | |
| 11 | 93404-06012-07 | BOLT-WASHER, 6X12 | 2 | |
| 12 | 94103-05800 | WASHER,PLAIN, 5.5MM | 2 | |
