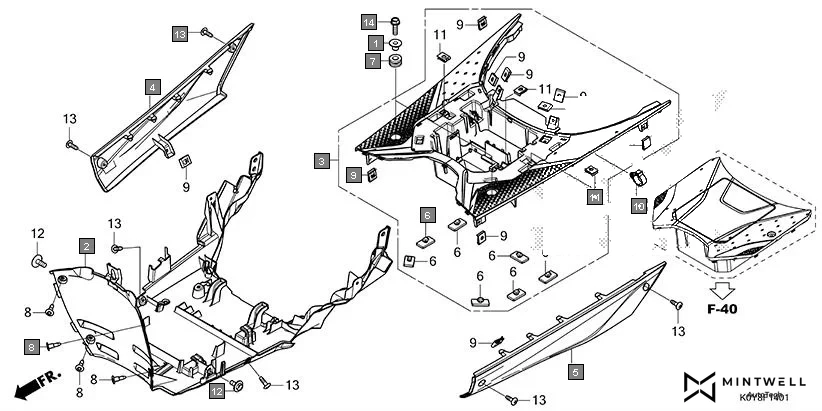

F-14-1 - FLOOR STEP(2)
HONDA Dio SCV110FBS · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KYJ-900 | COLLAR, AIR CLEANER MOUNTING | 2 | |
| 2 | 50621-K0Y-DH0ZA | COVER, UNDER *NH1* BLACK | 1 | |
| 3 | 64310-K0Y-DR0ZA | STEP, FLOOR *NH1*BLACK | 1 | |
| 4 | 64320-K0Y-DH0ZC | COVER, R. FLOOR SIDE *NH1* BLACK | 1 | |
| 5 | 64330-K0Y-DH0ZC | COVER, L. FLOOR SIDE *NH1* BLACK | 1 | |
| 6 | 64461-K0P-D00 | CUSHION A, BATTERY | 7 | |
| 7 | 83545-KCJ-690 | RUBBER, SIDE COVER | 2 | |
| 8 | 90116-K3V-N01 | RIVET, PUSH, 6MM | 4 | |
| 9 | 90344-KRP-900 | NUT CLIP 5MM | 10 | |
| 10 | 90652-K0J-N01 | CLAMP B, CABLE | 1 | |
| 11 | 90654-K0L-DQ0 | NUT, CLIP, 5MM | 3 | |
| 12 | 93404-06012-08 | BOLT-WASHER, 6X12 | 2 | |
| 13 | 93903-25380 | SCREW TAPPING 5X16 | 6 | |
| 14 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 2 | |
