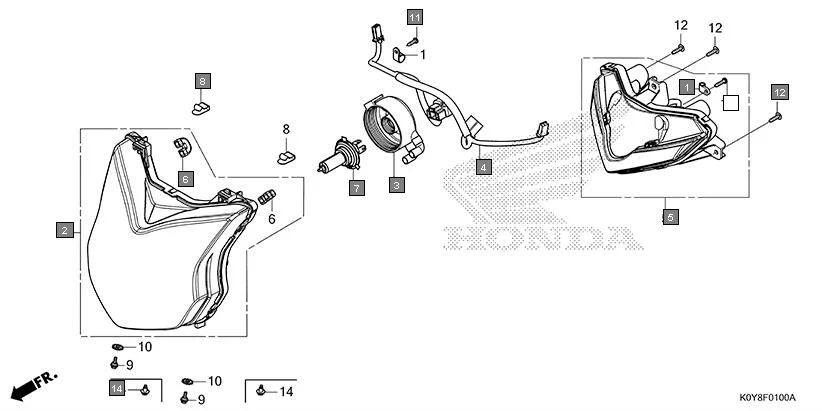

F-1 - HEADLIGHT(1)
HONDA Dio SCV110FBS · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 33110-KZK-D21 | HEADLIGHT UNIT(12V 35/35W) (FIEM) | 1 | |
| 3 | 33112-KWS-901 | COVER, RUBBER | 1 | |
| 4 | 33120-K0Y-D01 | SUB CORD, HEADLIGHT | 1 | |
| 5 | 33180-K0Y-D01 | LIGHT ASSY., POSITION | 1 | |
| 7 | 34901-KVN-971 | BULB HEAD LIGHT | 1 | |
| 7 | 34901-KTE-D01 | BULB, HEADLIGHT(12V 35/35W) (OSRAM) | 1 | |
| 8 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 11 | 93901-34420 | SCREW ,TAPPING,4 X 16 | 1 | |
| 12 | 93903-24410 | SCREW, TAPPING, 4X16 | 3 | |
| 13 | 93913-14120 | SCREW, TAPPING, 4X10 | 1 | |
| 14 | 90101-K1E-600 | BOLT, ADJUSTING | 2 | |
