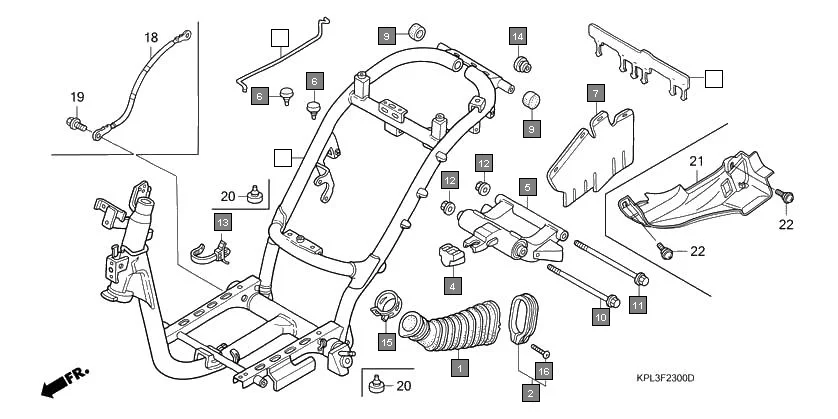

F-23 - FRAME BODY
HONDA Activa SCV1109 · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11345-GCC-000 | DUCT, L. COVER | 1 | |
| 2 | 11346-KCW-870 | BAND, L. COVER. DUCT | 1 | |
| 3 | 50100-KPL-901 | BODY COMP., FRAME | 1 | |
| 4 | 50352-GW0-730 | RUBBER, LINK STOPPER | 1 | |
| 5 | 50355-KPL-900 | LINK, SUB ASSY., ENG. HANGER | 1 | |
| 6 | 50501-KPL-900 | STOPPER, RUBBER | 2 | |
| 7 | 80102-KPL-900 | PLATE, FRAME BODY SPLASH GUARD | 1 | |
| 8 | 81256-KPL-900 | ROD, BODY OPENER | 1 | |
| 8 | 81256-KPL-901 | ROD, BODY OPENER | 1 | |
| 9 | 83561-KPL-900 | CUSHION, BODY COVER | 2 | |
| 10 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 11 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 12 | 90304-KCS-920 | NUT`U 10 MM | 2 | |
| 13 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 14 | 90862-GCC-000 | PLUG, FRAME, END | 1 | |
| 15 | 91405-KPL-900 | CLAMP, D29 TUBE | 1 | |
| 16 | 93500-04025-0G | SCREW, PAN, 4X25 | 1 | |
| 17 | 80101-KPL-900 | SPLASH GUARD, RR. FRAME | 1 | |
