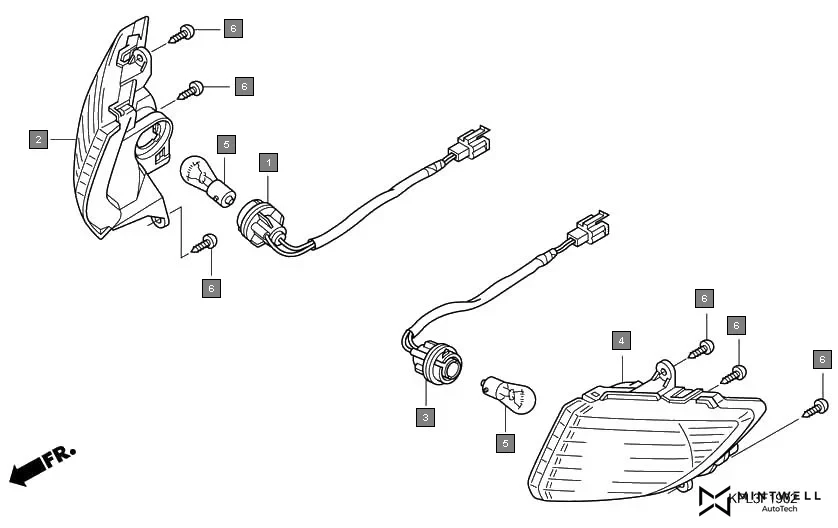

F-19-2 - FRONT WINKER(SCV1109,B)
HONDA Activa SCV1109 · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33405-KWP-901 | SOCKET COMP., R. | 1 | |
| 2 | 33410-KWP-901 | LENS COMP., R. | 1 | |
| 3 | 33455-KWP-901 | SOCKET COMP., L. | 1 | |
| 4 | 33460-KWP-901 | LENS COMP., L. | 1 | |
| 5 | 34904-KTE-910 | BULB, WINKER(AMBER)(12V 21W) | 2 | |
| 6 | 93903-24310 | SCREW, TAPPING, 4X12 | 6 | |
