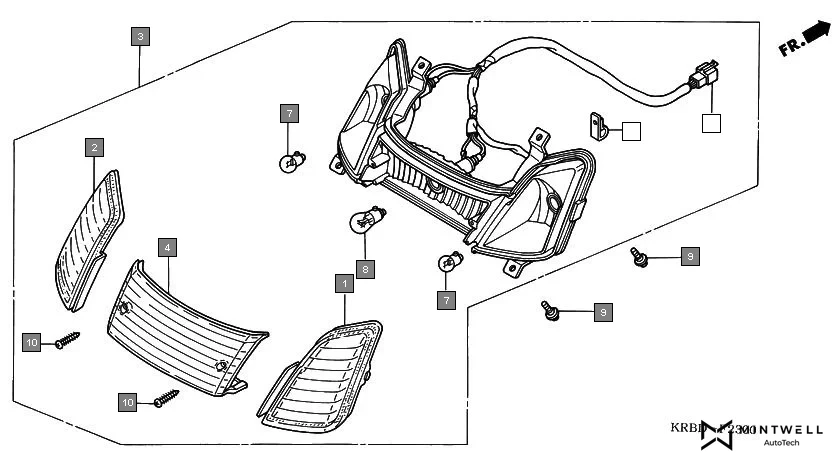

F-23 - TAILLIGHT
HONDA Eterno SC1504 · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33602-KRB-901 | LENS, R. RR. WINKER | 1 | |
| 2 | 33652-KRB-901 | LENS, L. RR. WINKER | 1 | |
| 3 | 33700-KRB-901 | LIGHT ASSY., RR. COMBINATION | 1 | |
| 4 | 33701-KRB-901 | LENS COMP., TAILLIGHT | 1 | |
| 5 | 33704-KRB-901 | BASE COMP., RR. | 1 | |
| 6 | 33711-KAB-003 | CLAMP, PLATE | 1 | |
| 7 | 34904-KRB-900 | BULB, WINKER (12V 10W) | 2 | |
| 8 | 34906-KRB-900 | BULB, TAILLIGHT(12V 21/5W) | 1 | |
| 9 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 4 | |
| 10 | 93901-34580 | SCREW, TAPPING, 4X20 | 2 | |
