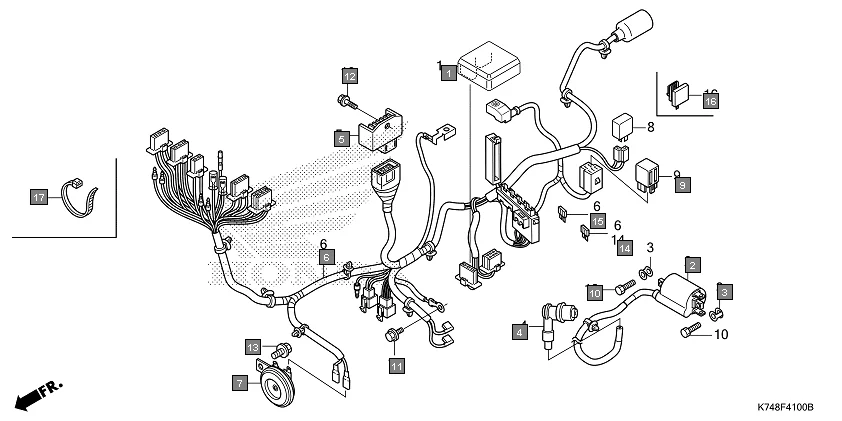

F-41 - WIRE HARNESS
HONDA Navi NVA110H · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30410-K74-N81 | SPARK UNIT | 1 | |
| 2 | 30500-K74-N01 | COIL ASSY., IGNITION | 1 | |
| 3 | 30520-GFM-900 | SPACER, IGNITION COIL | 2 | |
| 4 | 30700-K24-921 | CAP ASSY., NOISE SUPPRESSOR | 1 | |
| 5 | 31600-KWP-E02 | RECTIFIER COMP., REGULATE(STAR ENGINEERS) | 1 | |
| 6 | 32100-K74-N60 | HARNESS, WIRE | 1 | |
| 7 | 38110-KYJ-T01 | HORN COMP.(HIGH) | 1 | |
| 9 | 38501-KPL-901 | RELAY COMP., STARTER(MULTILINK) | 1 | |
| 10 | 92101-06020-4J | BOLT, HEX., 6 X 20 | 2 | |
| 12 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 1 | |
| 13 | 95701-08012-08 | BOLT, FLANGE, 8X12 | 1 | |
| 14 | 98200-30750 | BLADE, FUSE, 7.5A | 2 | |
| 15 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 16 | 38301-K74-N81 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 | |
| 17 | 90657-KRP-901 | CABLE, TIE(LONG) | 1 | |
