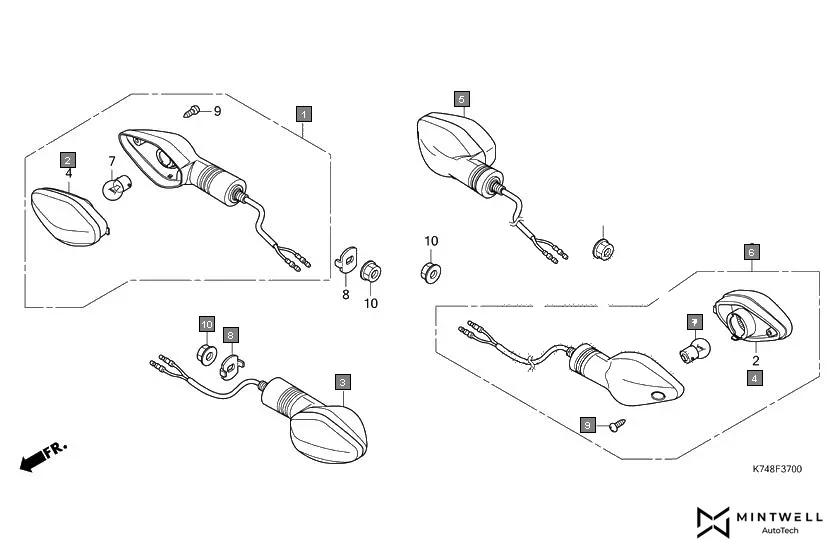

F-37 - WINKER
HONDA Navi NVA110H · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33400-K74-N81 | WINKER ASSY., R. FR.(12V 10W) | 1 | |
| 2 | 33403-K23-901 | LENS COMP., R. (R. FR./L. RR.) | 2 | |
| 3 | 33450-K23-901 | WINKER ASSY., L. FR.(12V 10W) | 1 | |
| 4 | 33453-K23-901 | LENS COMP., L. (L. FR./R. RR.) | 2 | |
| 5 | 33600-K74-N01 | WINKER ASSY., R. RR.(12V 10W) | 1 | |
| 6 | 33650-K74-N01 | WINKER ASSY., L. RR.(12V 10W) | 1 | |
| 7 | 34904-K23-900 | BULB, WINKER LIGHT(R10W) | 4 | |
| 8 | 61315-GGJ-700 | STAY, WINKER | 2 | |
| 9 | 93901-34380 | SCREW TAPPING 4X12 | 4 | |
| 10 | 94050-10000 | NUT, FLANGE, 10MM | 4 | |
