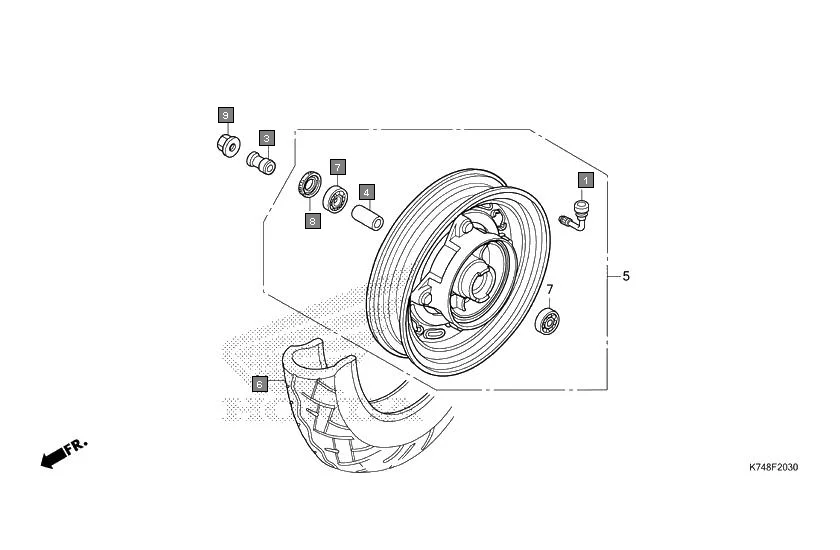

F-20-30 - FRONT WHEEL
HONDA Navi NVA110H · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42753-KWP-E01 | VALVE, RIM(TRITON) | 1 | |
| 1 | 42753-K24-G01 | VALVE, RIM(ACCURA) | 1 | |
| 3 | 44311-K74-N00 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | 44620-KPL-900 | COLLAR FR WHEEL DISTANCE | 1 | |
| 5 | 44650-K74-N21 | WHEEL SUB ASSY., FR............ | 1 | |
| 6 | 44711-K74-N02 | TIRE, FR.(CEAT)(90/90-12 54J). | 1 | |
| 6 | 44711-KVT-D03 | TIRE, FR.(TVS)(90/90-12 54J).. | 1 | |
| 6 | 44711-KVT-D01 | TIRE, FR.(MRF)(90/90-12 54J) | 1 | |
| 7 | 90912-KPL-900 | BEARING BALL RADIAL 6201(U) | 2 | |
| 7 | 91052-K0L-D01 | BEARING, RADIAL BALL, 6201U (FAG) | 1 | |
| 8 | 91251-KWP-901 | SEAL DUST 20X32X5 | 1 | |
| 9 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 10 | 44660-K74-N20 | RIM SET, WHEEL................ | 1 | |
| 12 | 90304-KST-942 | NUT FLG.PT 10MM | 1 | |
| 12 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 1 | |
