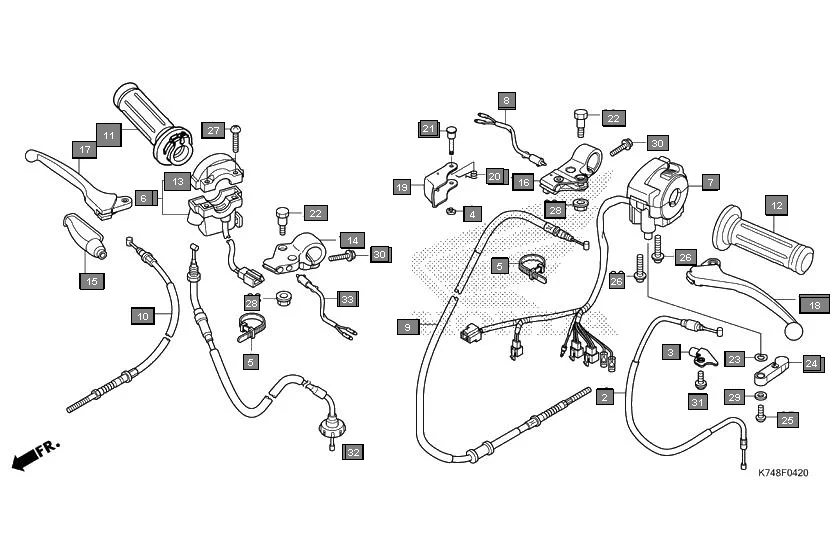

F-4-20 - HANDLE LEVER/SWITCH/CABLE
HONDA Navi NVA110G · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 17950-K74-N00 | CABLE COMP., CHOKE | 1 | |
| 3 | 17962-K74-N00 | STOPPER, CABLE | 1 | |
| 4 | 30158-GW3-980 | RING E TYPE 3MM | 1 | |
| 5 | 32161-KSP-920 | BAND B1, WIRE | 2 | |
| 6 | 35150-K74-N01 | SWITCH ASSY., START | 1 | |
| 7 | 35200-K74-N01 | SWITCH ASSY., WINKER | 1 | |
| 8 | 35340-K74-N00 | SWITCH ASSY., FR. STOP | 1 | |
| 9 | 43450-K74-N01 | CABLE COMP., RR. BRAKE(HI-LEX) | 1 | |
| 10 | 45450-K74-N01 | CABLE COMP., FR. BRAKE | 1 | |
| 11 | 53146-K74-N00 | GRIP COMP., THROTTLE | 1 | |
| 12 | 53166-KPL-901 | GRIP, L. HANDLE | 1 | |
| 13 | 53168-KWA-841 | HOUSING UP., THROTTLE | 1 | |
| 14 | 53171-K14-900 | BRACKET, R. HANDLE LEVER | 1 | |
| 15 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 16 | 53172-K74-N00 | BRACKET, L. HANDLE LEVER | 1 | |
| 17 | 53175-KYY-900 | LEVER COMP., R. HANDLE | 1 | |
| 18 | 53178-K74-N00 | LEVER COMP., L. HANDLE | 1 | |
| 19 | 53181-K74-N00 | LEVER COMP., BRAKE LOCK | 1 | |
| 20 | 53182-GW3-980 | SPRING, RETURN LEVER | 1 | |
| 21 | 53183-K74-N00 | PIN, PARKING LEVER PIVOT | 1 | |
| 22 | 90113-KYY-900 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 23 | 90442-147-000 | WASHER, WAVE | 1 | |
| 24 | 17961-K74-N00 | LEVER, CHOKE | 1 | |
| 25 | 93500-05010-0A | SCREW, PAN, 5X10 | 1 | |
| 26 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 27 | 93500-05022-0G | SCREW, PAN, 5X22 | 2 | |
| 28 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 29 | 94103-05000 | WASHER, PLAIN, 5MM | 1 | |
| 30 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 31 | 93891-05016-07 | SCREW WASH 5X16 | 1 | |
| 32 | 06179-K74-N00 | 06179-K74-N00 CABLE SET, THROTTLE | 1 | |
| 33 | 35340-KZA-W01 | SW ASSY. FR STOP | 1 | |
