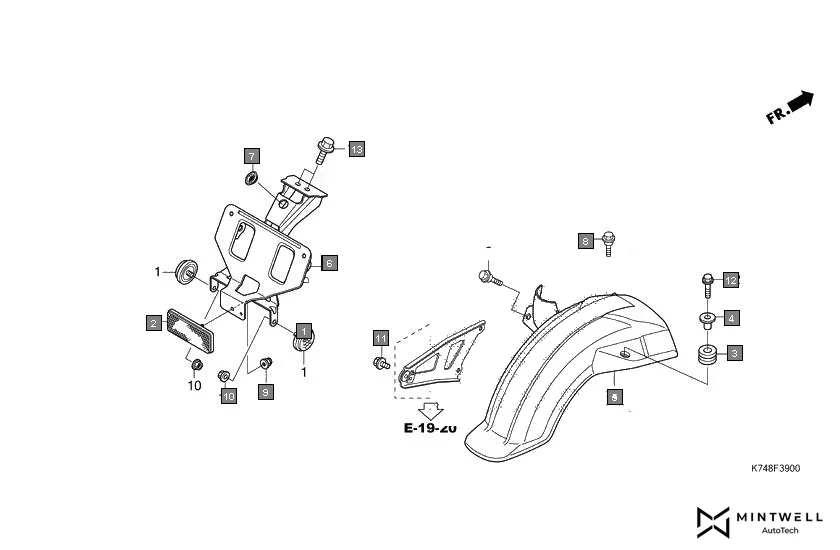

F-39 - REAR FENDER
HONDA Navi NVA110G · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33740-KTE-601 | REFLECTOR, FR. SIDE REFLEX | 2 | |
| 2 | 33741-KPL-902 | REFLECTOR, REFLEX | 1 | |
| 3 | 61103-357-000 | RUBBER FR. FENDER MOUNT | 1 | |
| 4 | 61104-428-730 | COLLAR, FR. FENDER(BLACK)..... (FOR RR.) | 1 | |
| 5 | 80107-K74-N00 | FENDER, RR. INNER | 1 | |
| 6 | 80108-K74-N20 | BRACKET, NUMBER PLATE | 1 | |
| 6 | 80108-K74-N30 | BRACKET, NUMBER PLATE | 1 | |
| 9 | 90301-KWN-901 | NUT, U, 5MM(FUJI SEIMITSU)..... | 1 | |
| 10 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 11 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 1 | |
