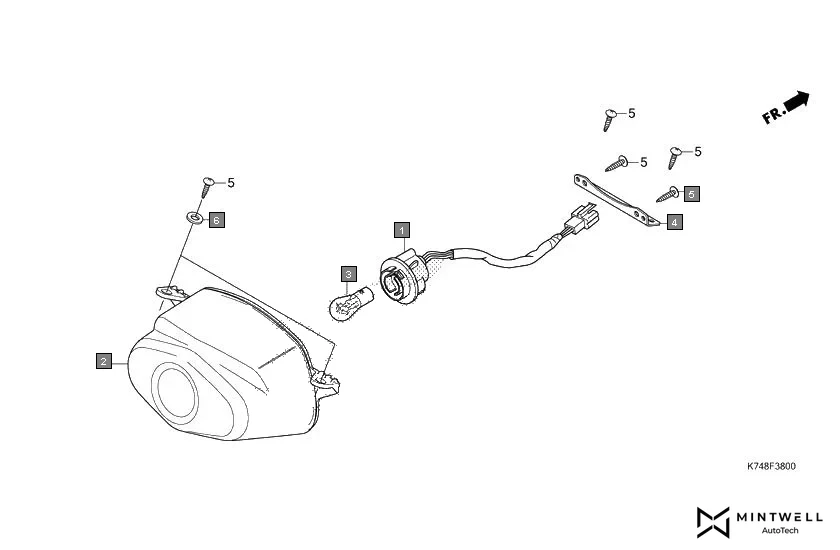

F-38 - TAILLIGHT
HONDA Navi NVA110G · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33703-K74-N01 | SOCKET COMP., TAILLIGHT | 1 | |
| 2 | 33710-KWF-901 | UNIT COMP TAIL LIGHT | 1 | |
| 3 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 4 | 77250-KWF-900 | STAY TAIL LIGHT | 1 | |
| 6 | 94103-04800 | WASHER PLAIN 4MM | 2 | |
