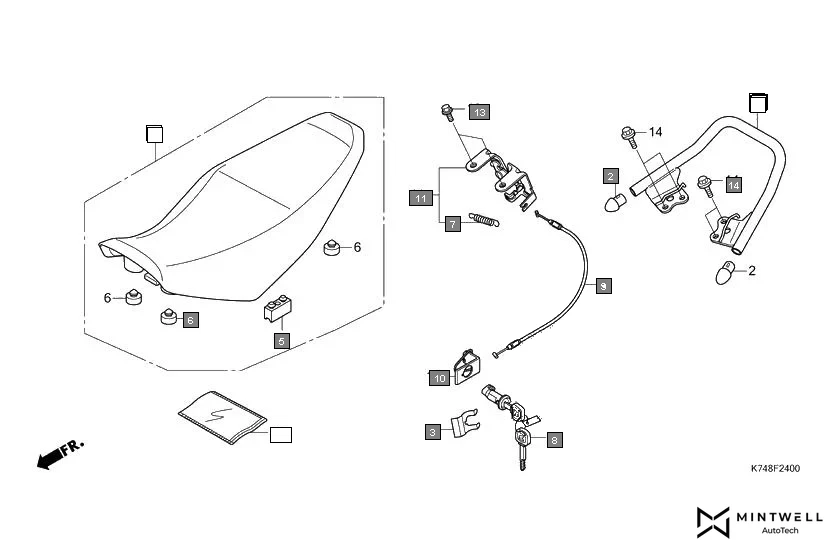

F-24 - SEAT/REAR GRIP
HONDA Navi NVA110G · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50400-K74-N80ZA | GRIP, RR. *YR250* VIBRANT ORANGE | 1 | |
| 1 | 50400-K74-N80ZB | GRIP, RR. *R321* SPORTS RED | 1 | |
| 1 | 50400-K74-N80ZE | GRIP, RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 1 | 50400-K74-N80ZF | GRIP, RR. *NHB60M* MAT SELENE SILVER METALLIC | 1 | |
| 1 | 50400-K74-N80ZG | GRIP, RR. *NHB16* VIRTUOUS WHITE | 1 | |
| 1 | 50400-K74-N80ZH | GRIP, RR. *GY155M* MAT MARSHAL GREEN METALLIC | 1 | |
| 1 | 50400-K74-N80ZJ | GRIP, RR. *RP177M* LUSH MAGENTA METALLIC | 1 | |
| 2 | 50415-KTE-910 | CAP, RR. GRIP END | 2 | |
| 3 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 4 | 77200-K74-N81ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 | |
| 4 | 77200-K74-N01ZB | SEAT ASSY., DOUBLE *TYPE1* | 1 | |
| 5 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 2 | |
| 6 | 77206-KTE-910 | RUBBER, SEAT SETTING | 4 | |
| 7 | 77234-GN2-000 | SPRING, SEAT LOCK | 1 | |
| 8 | 77239-KWP-D21 | KEY, SEAT LOCK(MINDA) | 1 | |
| 9 | 77240-K74-N00 | CABLE, SEAT LOCK | 1 | |
| 10 | 77241-K74-N00 | STAY, SEAT LOCK | 1 | |
| 11 | 77250-K38-900 | LOCK COMP., SEAT | 1 | |
| 12 | 77251-KPL-900 | BAG, SERVICE BOOK | 1 | |
| 13 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 | |
