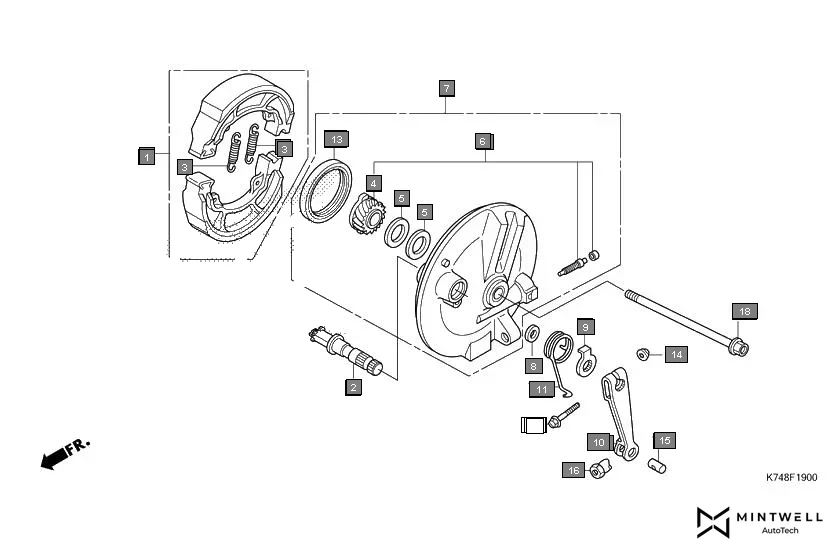

F-19 - FRONT BRAKE PANEL
HONDA Navi NVA110G · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06430-KTN-700 | SHOE SET, BRAKE(JB) | 1 | |
| 1 | 06430-KVT-D10 | SHOE SET, BRAKE(ASK) | 1 | |
| 2 | 43141-KVT-D10 | CAM, RR. BRAKE | 1 | |
| 3 | 43151-329-000 | SPRING, BRAKE SHOE (ASK) | 2 | |
| 4 | 44804-KVT-F01 | GEAR, SPEEDOMETER | 1 | |
| 5 | 44809-KTC-900 | WASHER, SPEEDOMETER GEAR | 2 | |
| 6 | 44820-KVT-F00 | GEAR SET, SPEEDOMETER | 1 | |
| 7 | 45010-K74-N00 | PANEL SUB COMP., FR. BRAKE | 1 | |
| 8 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 9 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 10 | 45410-K74-N00 | ARM, FR. BRAKE | 1 | |
| 11 | 45435-KPL-900 | SPRING, BRAKE ARM RETURN | 1 | |
| 13 | 91253-KPL-900 | DUST SEAL , 41 X60 X7 | 1 | |
| 17 | 95702-06032-00 | BOLT, FLANGE, 6X32 | 1 | |
| 17 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 18 | 44301-K74-N00 | AXLE, FR. WHEEL | 1 | |
