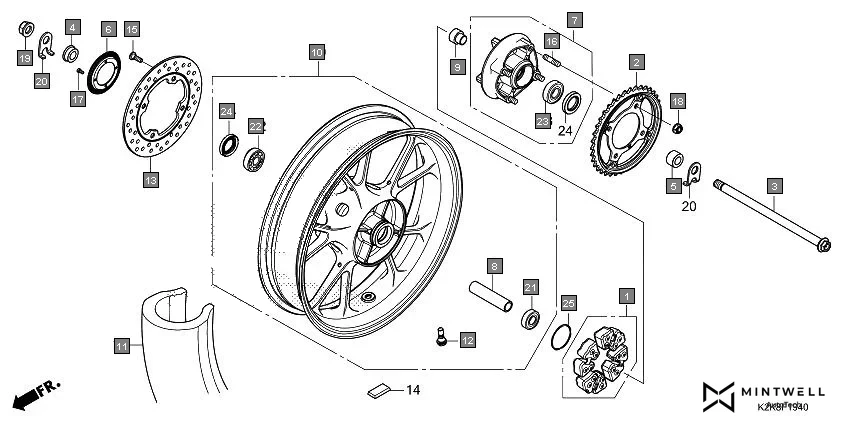

F-19-40 - REAR WHEEL
HONDA CB300F MC300AN · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06410-KSP-900 | DAMPER SET, WHEEL | 1 | |
| 2 | 41200-K2K-D00 | SPROCKET COMP., FINAL DRIVEN (38T) | 1 | |
| 3 | 42301-K2K-D00 | AXLE, RR. WHEEL | 1 | |
| 4 | 42312-K2K-D00 | COLLAR, R. WHEEL SIDE | 1 | |
| 5 | 42313-K87-A00 | COLLAR, L. RR. WHEEL SIDE | 1 | |
| 6 | 42515-K0A-DB0 | RING, RR. PULSER | 1 | |
| 7 | 42615-K2K-D00ZA | FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 8 | 42620-KYJ-900 | COLLAR, RR. WHEEL DISTANCE | 1 | |
| 9 | 42625-MC4-000 | COLLAR B, RR. AXLE DISTANCE | 1 | |
| 10 | 42650-K2K-D00ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 | |
| 11 | 42711-K0A-DB1 | TIRE, RR.(MRF) (150/60R17 M/C 66H) | 1 | |
| 12 | 42753-K24-G11 | VALVE, RIM(ACCURA) | 1 | |
| 12 | 42753-KWF-901 | VALVE, RIM(TRITON) | 1 | |
| 13 | 43251-K2K-D01 | DISK, RR. BRAKE | 1 | |
| 15 | 90105-KSP-870 | BOLT, FRONT DISK, 8 X 24 | 4 | |
| 16 | 90128-K45-N00 | BOLT, STUD, 10X22 | 4 | |
| 17 | 90131-KYJ-610 | BOLT, TORX, 5X10 | 4 | |
| 18 | 90304-KTE-911 | NUT, FLANGE SPECIAL, 10MM (SIMMONDS MARSHALL) | 4 | |
| 19 | 90305-KYJ-711 | NUT, FLANGE, 16MM (PREVAILING TORQUE) | 1 | |
| 20 | 90559-K31-900 | WASHER, RR. SWINGARM | 2 | |
| 21 | 91051-K43-901 | BEARING, RADIAL BALL, 6203U (NBC) | 1 | |
| 22 | 91052-K43-901 | BEARING, RADIAL BALL, 6303U (NBC) | 1 | |
| 23 | 91082-KYJ-711 | BEARING, RADIAL BALL, 6204UU (NEI) | 1 | |
| 24 | 91253-443-761 | DUST SEAL, 30X47X8(ARAI) | 2 | |
| 25 | 91352-KSP-900 | O RING, 51 X 2 | 1 | |
