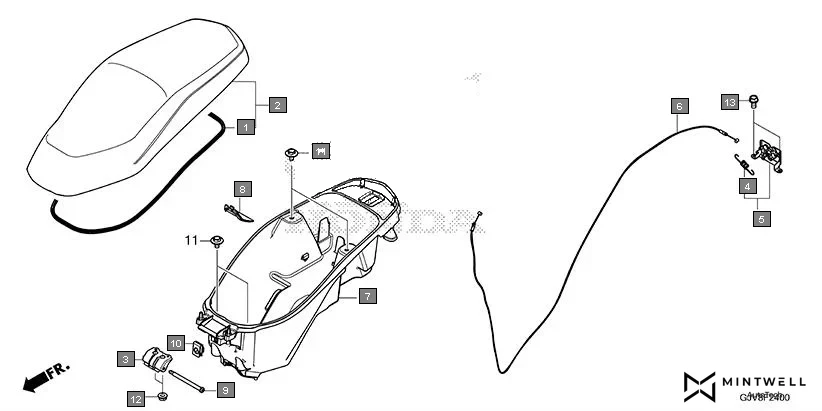

F-24-SEAT/LUGGAGE BOX
HONDAQC1 EFS9001S · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77115-GJV-D00 | RUBBER, SEAL | 1 | |
| 2 | 77200-GJV-D01ZA | SEAT COMP., DOUBLE *TYPE1* | 1 | |
| 3 | 77201-KWP-900 | HINGE SEAT | 1 | |
| 4 | 77234-K0L-D00 | SPRING, SEAT LOCK | 1 | |
| 5 | 77235-K1J-D00 | CATCH COMP., SEAT | 1 | |
| 6 | 77240-GJV-D01 | CABLE COMP., SEAT LOCK | 1 | |
| 7 | 81250-GJV-D00 | BOX, LUGGAGE | 1 | |
| 8 | 81252-GJV-D00 | COVER, FUSE BOX | 1 | |
| 9 | 90105-KTP-900 | PIN, HINGE | 1 | |
| 10 | 90653-K0P-D00 | NUT, CLIP, 6MM | 1 | |
| 11 | 93404-06012-07 | BOLT-WASHER, 6X12 | 4 | |
| 12 | 94050-06080 | NUT, FLANGE, 6MM | 2 | |
| 13 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 2 |
