OEM Part
OEM Part
90107-MJP-G50
SCREW, PAN, 5X12
Qty Required: 4
Ref #16 in Assembly
Part of Assembly
F-32
SWINGARM
26 parts in this assembly

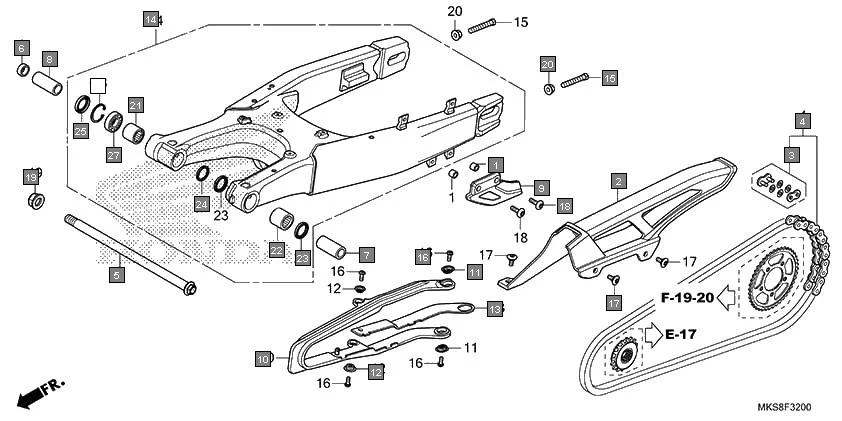

Assembly Diagram
Ref #16
Supported Vehicles12
Related Parts
17202-ZV4-310
COLLAR, DISTANCE
40510-MKS-E00
CASE, DRIVE CHAIN
40535-MJM-D01
JOINT SET, DRIVE CHAIN(DAIDO)
40540-MJP-G51
CHAIN, DRIVE(DAIDO) (DID525HV3-130ZB) (STANDARD LINK 124L)
52101-MKS-E00
BOLT, SWINGARM PIVOT
52141-MKS-E00
COLLAR A, PIVOT
