OEM Part
OEM Part
35350-MJP-G51
SWITCH ASSY., RR. STOP(TOYO)
Qty Required: 1
Ref #1 in Assembly
Part of Assembly

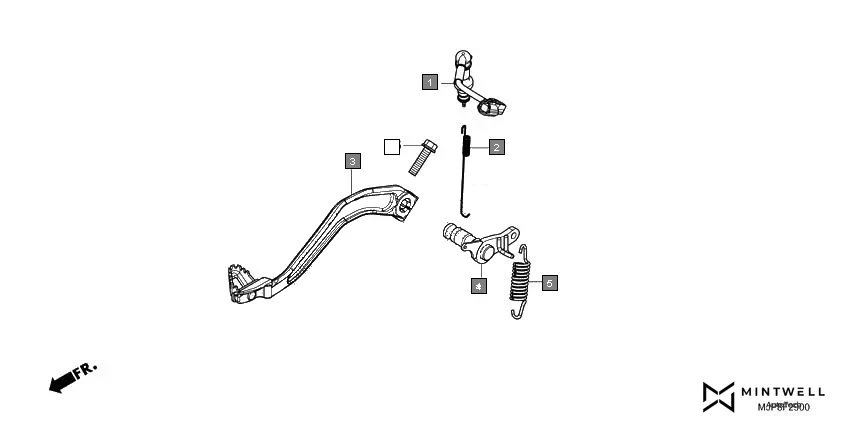

F-29
REAR BRAKE PEDAL
6 parts in this assembly
Assembly Diagram
Ref #1
Supported Vehicles3
Related Parts
35357-HN8-000
SPRING, STOP SWITCH
46500-MJP-G50
PEDAL COMP., RR. BRAKE
46502-MJP-G50
ARM COMP., MIDDLE
46513-MJP-G50
SPRING, BRAKE RETURN
95701-08032-08
BOLT, FLANGE, 8X32
