HONDA OEM Part

90304-MCS-G01

NUT, U, FLANGE, 10MM

Qty Required: 2 Ref #5 in Assembly

Part of Assembly

F-33
REAR CUSHION
9 parts in this assembly

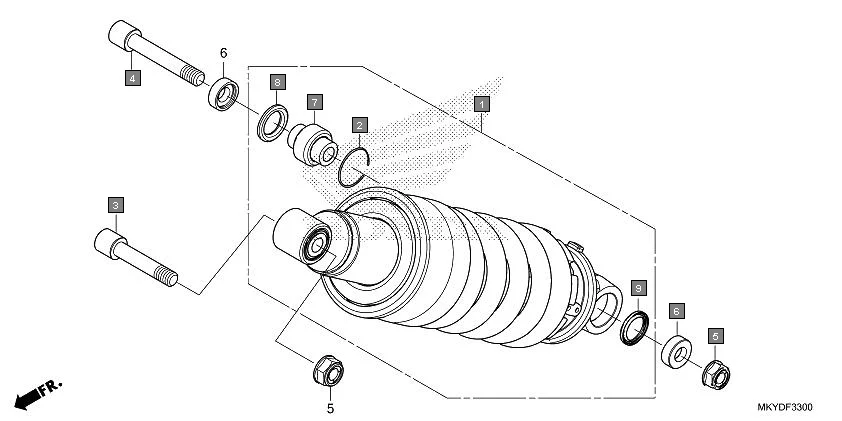

Assembly Diagram

F-33 REAR CUSHION diagram showing 90304-MCS-G01
Ref #5

Supported Vehicles13

HHONDA CBR650R CBR650RAN
HONDA CBR650R CBR650RAN
Current
HHONDA Africa Twin CRF1000DH
HONDA Africa Twin CRF1000DH
HHONDA Africa Twin CRF1000DJ
HONDA Africa Twin CRF1000DJ
HHONDA Africa Twin CRF1000DK
HONDA Africa Twin CRF1000DK
HHONDA Africa Twin CRF1100AL2L
HONDA Africa Twin CRF1100AL2L
HHONDA Africa Twin CRF1100AL2M
HONDA Africa Twin CRF1100AL2M
HHONDA Africa Twin CRF1100AL2N
HONDA Africa Twin CRF1100AL2N
HHONDA Africa Twin CRF1100DL2L
HONDA Africa Twin CRF1100DL2L

Related Parts

52400-MKY-D51
CUSHION ASSY., RR.
52487-KA4-831
RING, STOPPER
90107-MJE-D00
BOLT, SOCKET, 10X51
90108-MJE-D00
BOLT, SOCKET, 10X70
90501-MKN-D50
COLLAR, RR. CUSHION
91071-MEC-003
BEARING, SPHERICAL, 10MM
View all 9 parts in this assembly
