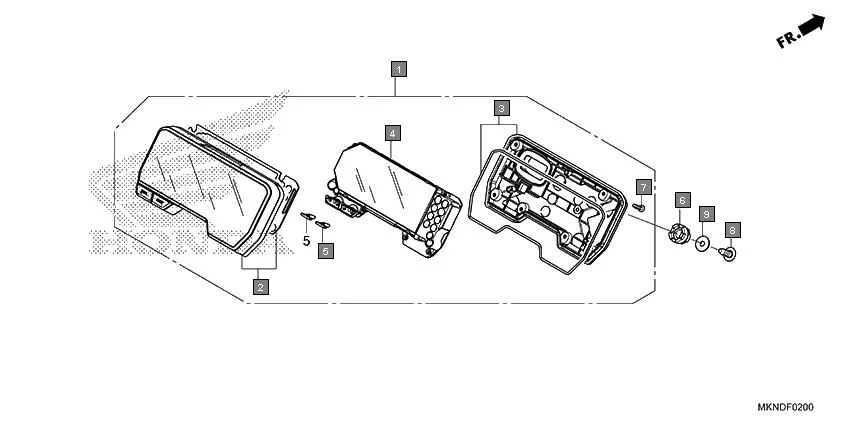

F-2-METER
HONDACBR650R CBR650RAL · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-MKN-D11 | METER ASSY., COMBINATION (KPH/MPH) | 1 | |
| 2 | 37110-MKN-D51 | CASE ASSY., UPPER | 1 | |
| 3 | 37120-MKN-D51 | CASE ASSY., UNDER | 1 | |
| 4 | 37130-MKN-D11 | METER COMP., LCD(KPH/MPH) | 1 | |
| 5 | 37205-MKN-D51 | KEY, TOP | 2 | |
| 6 | 37215-KZZ-D20 | RUBBER, METER SETTING | 3 | |
| 7 | 37605-MKH-D01 | SCREW, TAPPING, 3X14 | 7 | |
| 8 | 93913-25380 | SCREW, TAPPING, 5X14(PO) | 3 | |
| 9 | 94103-05700 | WASHER, PLAIN, 5MM | 3 |
