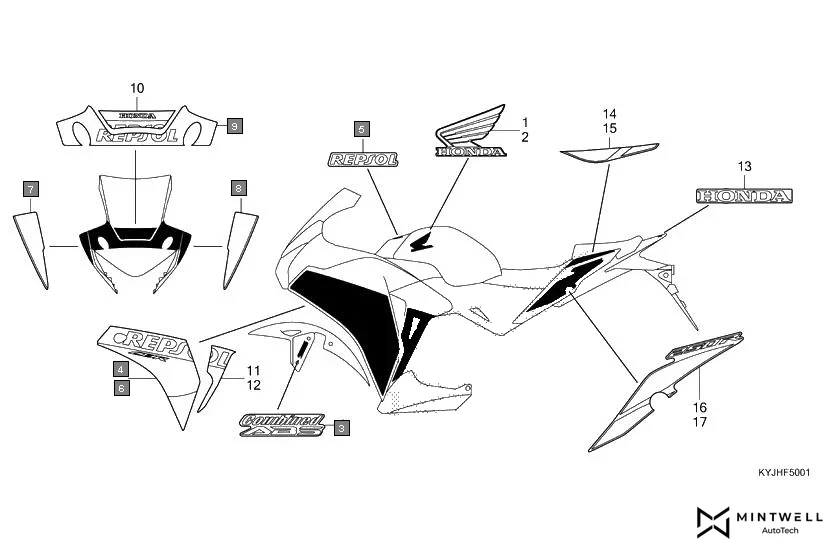

F-50-1 - MARK/STRIPE(3ID)
HONDA CBR250R CBR250RJ · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86201-KYJ-T00ZA | MARK, R. WING(90MM) *TYPE4* | 1 | |
| 2 | 86202-KYJ-T00ZA | MARK, L. WING(90MM) *TYPE4* | 1 | |
| 3 | 86611-KYJ-S90ZA | MARK, ABS *TYPE1* | 2 | |
| 4 | 86641-KYJ-M90ZA | STRIPE, R. MIDDLE COWL*TYPE1* | 1 | |
| 5 | 86642-KYJ-S90ZA | MARK, REPSOL *TYPE1* | 1 | |
| 6 | 86642-KYJ-M90ZA | STRIPE, L. MIDDLE COWL*TYPE1* | 1 | |
| 7 | 86643-KYJ-M90ZA | STRIPE, R. FR. SIDE COWL*TYPE1* | 1 | |
| 8 | 86644-KYJ-M90ZA | STRIPE, L. FR. SIDE COWL*TYPE1* | 1 | |
| 9 | 86645-KYJ-M90ZA | STRIPE, FR. UPPER COWL*TYPE1* | 1 | |
| 10 | 86646-KYJ-M90ZA | STRIPE, WINDSCREEN *TYPE1* | 1 | |
| 11 | 86647-KYJ-M90ZA | STRIPE, R. MIDDLE PANEL*TYPE1* | 1 | |
| 12 | 86648-KYJ-M90ZA | STRIPE, L. MIDDLE PANEL*TYPE1* | 1 | |
| 13 | 86831-KPP-T00ZA | MARK, HONDA *TYPE1* | 1 | |
| 14 | 86833-KYJ-M90ZA | STRIPE A, R. RR. COVER *TYPE1* | 1 | |
| 15 | 86834-KYJ-M90ZA | STRIPE A, L. RR. COVER*TYPE1* | 1 | |
| 16 | 86835-KYJ-M90ZA | STRIPE B, R. RR. COVER*TYPE1* | 1 | |
| 17 | 86836-KYJ-M90ZA | STRIPE B, L. RR. COVER*TYPE1* | 1 | |
