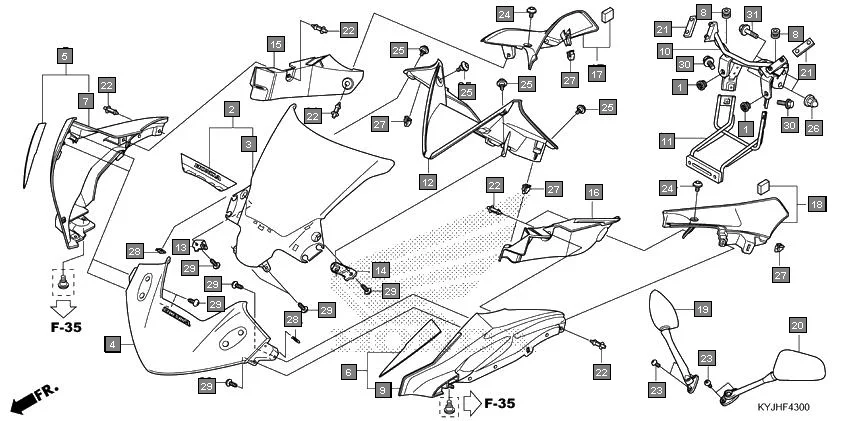

F-43 - UPPER COWL
HONDA CBR250R CBR250RAJ · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 64100-KYJ-M90ZA | WINDSCREEN SET(WL) *TYPE1* | 1 | |
| 3 | 64110-KYJ-H80 | WINDSCREEN | 1 | |
| 4 | 64200-KYJ-H80ZA | COWL SET, FR. UPPER(WL)*TYPE3* | 1 | |
| 4 | 64200-KYJ-H80ZB | COWL SET, FR. UPPER(WL)*TYPE2* | 1 | |
| 4 | 64200-KYJ-H80ZC | COWL SET, FR. UPPER(WL)*TYPE1* | 1 | |
| 4 | 64200-KYJ-M90ZA | COWL SET, FR. UPPER(WL) *TYPE1* | 1 | |
| 5 | 64201-KYJ-M90ZA | COWL SET, R. FR. SIDE(WL) *TYPE1*...................... ¿ | 1 | |
| 6 | 64202-KYJ-M90ZA | COWL SET, L. FR. SIDE(WL) *TYPE1* | 1 | |
| 7 | 64210-KPP-T00ZB | COWL, R. FR. SIDE *NH1* BLACK | 1 | |
| 7 | 64210-KPP-T00ZP | COWL, R. FR. SIDE *R321* SPORTS RED | 1 | |
| 8 | 64216-GJ2-730 | RUBBER, SCREEN SETTING | 2 | |
| 9 | 64220-KPP-T00ZB | COWL, L. FR. SIDE *NH1* BLACK | 1 | |
| 9 | 64220-KPP-T00ZQ | COWL, L. FR. SIDE *R321* SPORTS RED | 1 | |
| 10 | 64221-KYJ-710 | STAY COMP., FR. COWL UPPER | 1 | |
| 11 | 64225-KYJ-710 | BRAKET COMP., FR. NUMBER PLATE | 1 | |
| 12 | 64260-KPP-T00 | COWL, FR. INNER | 1 | |
| 13 | 64261-KPP-T00 | STAY, R. FR. INNER COWL | 1 | |
| 14 | 64262-KPP-T00 | STAY, L. FR. INNER COWL | 1 | |
| 15 | 64270-KPP-T00 | COWL, R. SIDE INNER | 1 | |
| 16 | 64280-KPP-T00 | COWL, L. SIDE INNER | 1 | |
| 17 | 64500-KYJ-T10 | LID ASSY., R. TANK | 1 | |
| 17 | 64500-KYJ-710ZF | LID ASSY., R. TANK *NH1* BLACK | 1 | |
| 18 | 64600-KYJ-T10 | LID ASSY., L. TANK | 1 | |
| 18 | 64600-KYJ-710ZF | LID ASSY., L. TANK *NH1* BLACK | 1 | |
| 19 | 88110-KYJ-H01 | MIRROR ASSY., R. BACK | 1 | |
| 20 | 88120-KYJ-H01 | MIRROR ASSY., L. BACK | 1 | |
| 21 | 88201-KPP-T00 | RUBBER, BACK MIRROR | 2 | |
| 22 | 90116-KWT-900 | RIVET, PUSH, 7MM | 6 | |
| 23 | 90130-KPP-T00 | BOLT, SOCKET, 6X13 | 4 | |
| 25 | 90134-KPP-T00 | SCREW, PAN, 5X14 | 4 | |
| 26 | 90307-KYJ-710 | NUT, CAP, 8MM | 2 | |
| 31 | 95801-08032-00 | BOLT, FLANGE, 8X32 | 2 | |
