OEM Part
OEM Part
50204-KYJ-900
STAY COMP., IGNITION COIL
Qty Required: 1
Ref #20 in Assembly
Part of Assembly

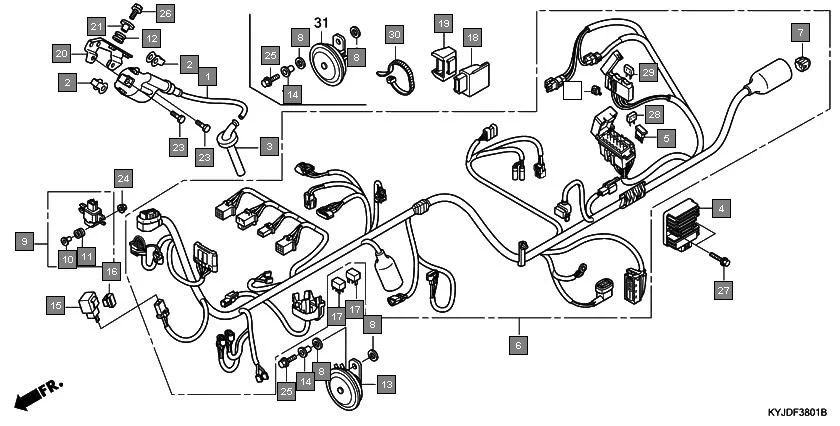

F-38-1
WIRE HARNESS(CBR250RA)
29 parts in this assembly
Assembly Diagram
Ref #20
Supported Vehicles11
Related Parts
30510-KYJ-901
COIL COMP., IGNITION
30520-GFM-900
SPACER, IGNITION COIL
30700-KY2-701
CAP ASSY., NOISE SUPPRESSOR
31600-KVK-901
RECTIFIER ASSY., REGULATOR
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
32100-KYJ-610
HARNESS, WIRE
