OEM Part
OEM Part
43150-KYJ-911
CALIPER SUB ASSY., RR.
Qty Required: 1
Ref #10 in Assembly
Part of Assembly
F-17-1

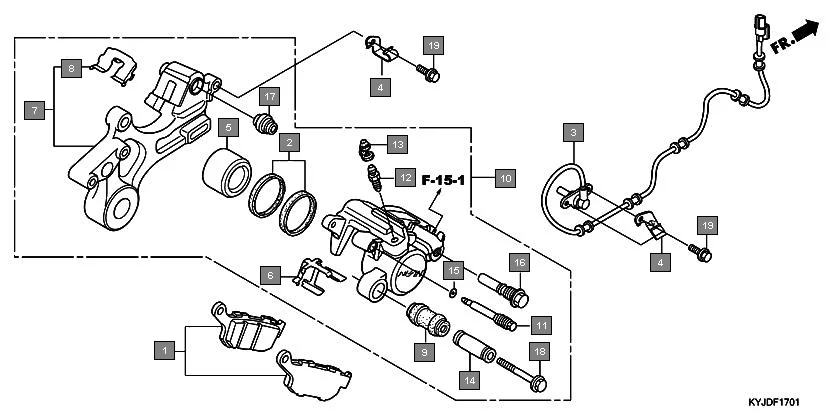

REAR BRAKE CALIPER(CBR250RA)
14 parts in this assembly
Assembly Diagram
Ref #10
Supported Vehicles6
Related Parts
06435-KYJ-901
PAD SET, RR.
06451-443-405
SEAL SET, PISTON
38510-KYJ-911
SENSOR, RR. WHEEL SPEED
38517-KYJ-910
CLAMPER, SPEED SENSOR CORD
43107-KT7-761
PISTON
43108-MBB-006
SPRING, PAD
