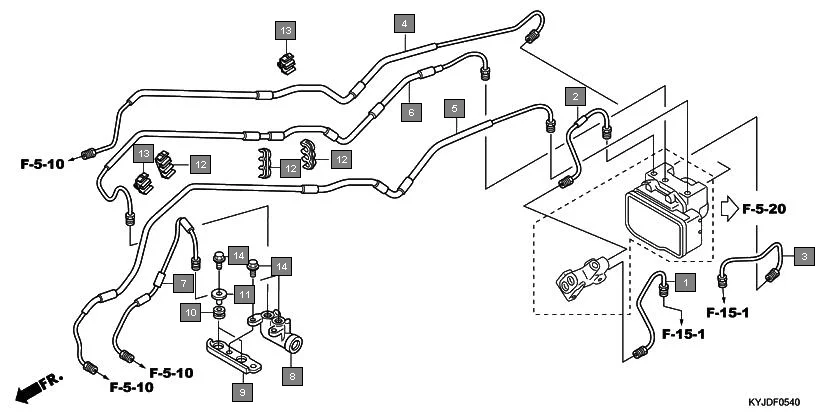

F-5-40 - BRAKE PIPE
HONDA CBR250R CBR250RAB · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43311-KYJ-910 | PIPE COMP. A, RR. BRAKE | 1 | |
| 2 | 43312-KYJ-910 | PIPE COMP. B, RR. BRAKE | 1 | |
| 3 | 43313-KYJ-910 | PIPE COMP. C, RR. BRAKE | 1 | |
| 4 | 45131-KYJ-910 | PIPE COMP. A, FR. BRAKE | 1 | |
| 5 | 45132-KYJ-910 | PIPE COMP. B, FR. BRAKE | 1 | |
| 6 | 45133-KYJ-910 | PIPE COMP. C, FR. BRAKE | 1 | |
| 7 | 45134-KYJ-910 | PIPE COMP. D, FR. BRAKE | 1 | |
| 8 | 46300-MFG-D21 | VALVE ASSY., DELAY | 1 | |
| 9 | 50243-KYJ-910 | BRACKET, DELAY VALVE | 1 | |
| 10 | 50247-KYJ-910 | RUBBER, DELAY VALVE MOUNT | 2 | |
| 11 | 61105-KPF-910 | COLLAR, FR. FENDER MOUNTING | 2 | |
| 12 | 90662-MCA-971 | CLAMP, BRAKE PIPE(6.8X3) | 3 | |
| 13 | 90664-MCA-003 | CLAMP, BRAKE PIPE(7.0X2) | 2 | |
| 14 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 4 | |
| 14 | 95702-06016-08 | BOLT, FLANGE, 6X16 | 4 | |
