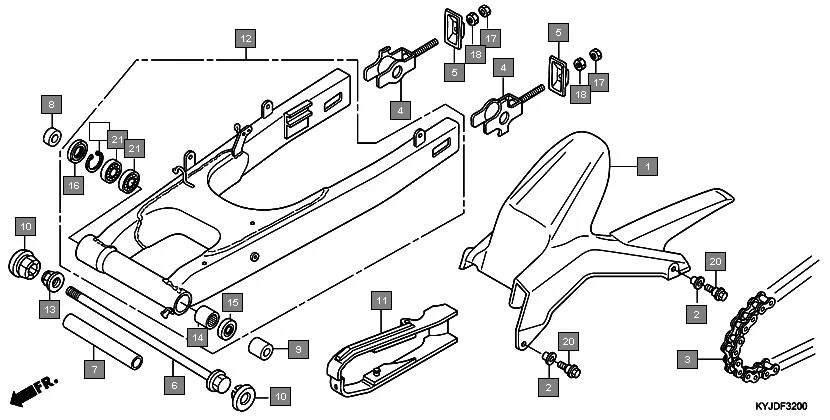

F-32 - SWINGARM
HONDA CBR250R CBR250RAB · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-KYJ-900 | CASE, DRIVE CHAIN | 1 | |
| 2 | 40511-KYJ-900 | COLLAR | 4 | |
| 3 | 40530-KYJ-711 | CHAIN, DRIVE(LGB) (R520BSOR-108LE) (ENDLESS TYPE) | 1 | |
| 3 | 40530-KYJ-901 | CHAIN, DRIVE(RK520KLO-108LE) (ENDLESS TYPE) | 1 | |
| 3 | 40530-KYJ-902 | CHAIN, DRIVE(DID520VF-108LE) (ENDLESS TYPE) | 1 | |
| 4 | 40543-KYJ-900 | ADJUSTER COMP., CHAIN | 2 | |
| 5 | 40546-KYJ-900 | CAP, SWINGARM END | 2 | |
| 5 | 40546-KYJ-S90 | CAP, SWINGARM END | 2 | |
| 6 | 52101-KYJ-900 | BOLT, SWINGARM PIVOT | 1 | |
| 7 | 52102-ML4-000 | COLLAR, PIVOT DISTANCE | 1 | |
| 8 | 52105-MJ0-000 | COLLAR B, RR. FORK PIVOT | 1 | |
| 9 | 52106-KYJ-900 | COLLAR, PIVOT | 1 | |
| 10 | 52161-KYJ-900 | CAP, RR. FORK PIVOT | 2 | |
| 11 | 52170-KYJ-900 | SLIDER, CHAIN | 1 | |
| 12 | 52200-KYJ-900 | SWINGARM SUB ASSY., RR. | 1 | |
| 12 | 52200-KYJ-S90 | SWINGARM SUB ASSY., RR. | 1 | |
| 13 | 90305-KVN-901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 | |
| 14 | 91071-MJ0-003 | BEARING, NEEDLE, 22X29X30(NTN) | 1 | |
| 14 | 91072-KYJ-711 | BEARING, NEEDLE, 22X29X30(NRB) | 1 | |
| 15 | 91205-965-003 | OIL SEAL, 22X31X5(ARAI) | 1 | |
| 16 | 91213-MB2-003 | DUST SEAL, 22X35X7(ARAI) | 1 | |
| 16 | 91213-MB2-006 | DUST SEAL, 22X35X7(NOK) | 1 | |
| 18 | 94031-08000 | NUT, HEX., 8MM | 2 | |
| 19 | 94520-35000 | CIRCLIP, INTERNAL, 35MM | 1 | |
| 20 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 4 | |
| 20 | 95702-06012-07 | BOLT, FLANGE, 6X12 | 4 | |
| 21 | 96100-62020-10 | BEARING, RADIAL BALL, 6202 | 2 | |
