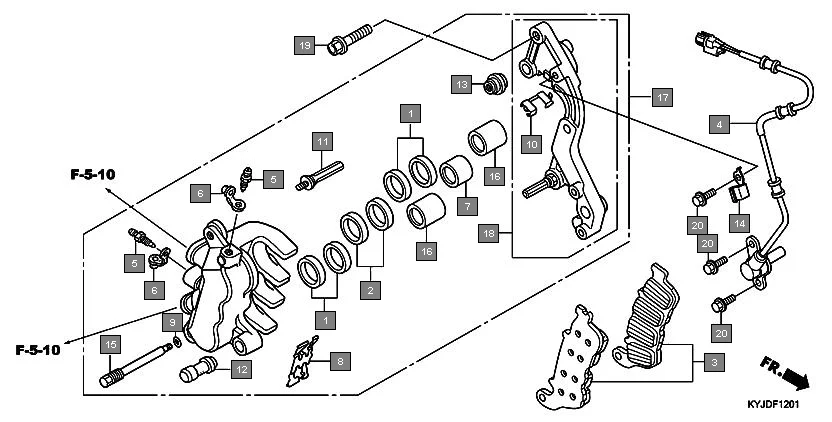

F-12-1 - FRONT BRAKE CALIPER(CBR250RA)
HONDA CBR250R CBR250RAB · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06431-MA3-405 | SEAL SET, PISTON | 2 | |
| 2 | 06451-MZ2-405 | SEAL SET, PISTON | 1 | |
| 3 | 06455-KYJ-911 | PAD SET, FR. | 1 | |
| 4 | 38520-KYJ-911 | SENSOR, FR. WHEEL SPEED | 1 | |
| 5 | 43352-568-003 | SCREW, BLEEDER(NISSIN) | 2 | |
| 6 | 43353-461-771 | CAP, BLEEDER | 2 | |
| 7 | 45107-MAJ-G41 | PISTON A, 22X27 | 1 | |
| 8 | 45108-KYJ-911 | SPRING, PAD | 1 | |
| 9 | 45111-MAJ-G41 | STOPPER RING | 1 | |
| 10 | 45112-MZ2-006 | RETAINER, BRACKET | 1 | |
| 11 | 45131-ML7-921 | BOLT A, PIN | 1 | |
| 12 | 45132-166-016 | BOOT, PIN BUSH(NISSIN) | 1 | |
| 13 | 45133-MA3-006 | BOOT B | 1 | |
| 14 | 45161-KYJ-610 | CLAMPER, SENSOR CORD | 1 | |
| 15 | 45215-MBT-D51 | PIN, HANGER | 1 | |
| 16 | 45218-MAJ-G41 | PISTON B, 27X35 | 2 | |
| 17 | 45250-KYJ-911 | CALIPER SUB ASSY., R. FR. | 1 | |
| 18 | 45290-MER-R81 | BRACKET SUB ASSY., R. FR. | 1 | |
| 19 | 90131-KYJ-710 | BOLT, FLANGE, 8X32 | 2 | |
| 20 | 96001-06010-07 | BOLT FLANGE, SH., 6 X 10 | 3 | |
