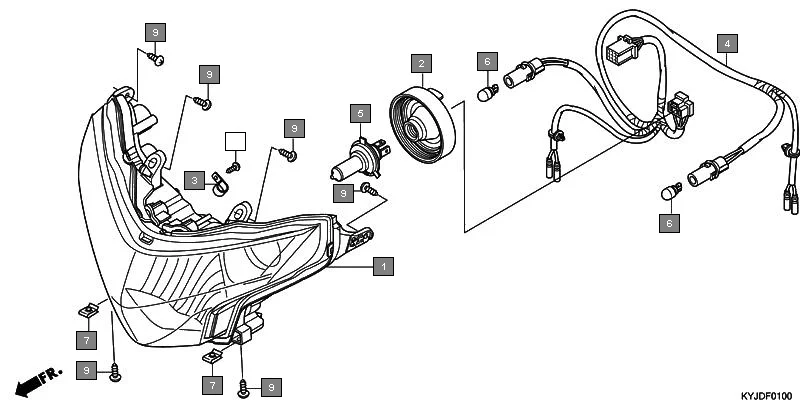

F-1 - HEADLIGHT
HONDA CBR250R CBR250RAB · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33110-KYJ-611 | HEADLIGHT UNIT | 1 | |
| 2 | 33112-KWR-003 | COVER, RUBBER | 1 | |
| 3 | 33116-KPP-T01 | CLAMP, CORD | 1 | |
| 4 | 33150-KYJ-901 | SOCKET COMP. | 1 | |
| 5 | 34901-KWR-003 | BULB, HEADLIGHT(H4) (12V 60/55W)(KOITO) | 1 | |
| 6 | 34908-SB6-003 | BULB(12V 5W)(KOITO) | 2 | |
| 7 | 90344-KPL-900 | NUT, CLIP, 5MM | 2 | |
| 8 | 93901-34320 | SCREW, TAPPING, 4X12 | 1 | |
| 9 | 93903-25380 | SCREW TAPPING 5X16 | 6 | |
