OEM Part
OEM Part
90114-KYJ-900
BOLT, FLANGE, 10X103
Qty Required: 1
Ref #7 in Assembly
Part of Assembly

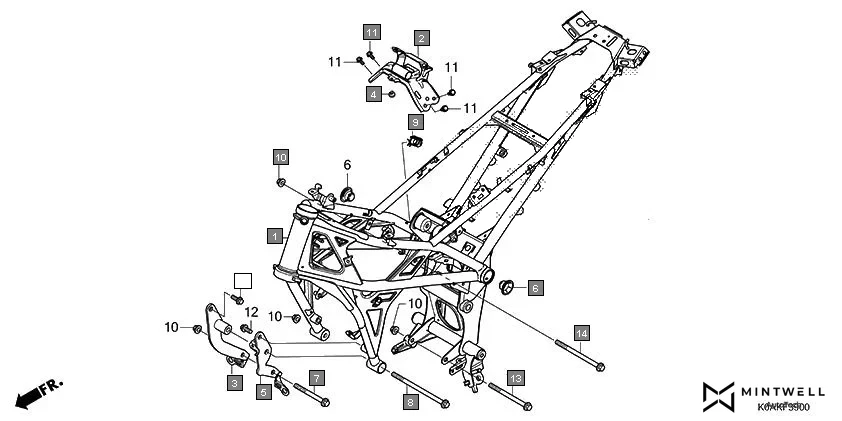

F-39
FRAME BODY
13 parts in this assembly
Assembly Diagram
Ref #7
Supported Vehicles3
Related Parts
50100-K0A-D10ZA
BODY COMP., FRAME *NH303M* MAT AXIS GRAY METALLIC
50295-K0A-E10
BRACKET COMP., FUEL TANK
50351-K0A-E10ZA
PLATE COMP., R. FR. ENGINE HANGER *NH303M* MAT AXIS GRAY METALLIC
50352-GS6-000
RUBBER, LINK STOPPER
50361-K0A-E10ZA
PLATE COMP., L. FR. ENGINE HANGER *NH303M* MAT AXIS GRAY METALLIC
52161-K94-T00
CAP, CROSS PIPE
