OEM Part
OEM Part
52200-K98-E00
SWINGARM SUB ASSY., RR.
Qty Required: 1
Ref #11 in Assembly
Part of Assembly

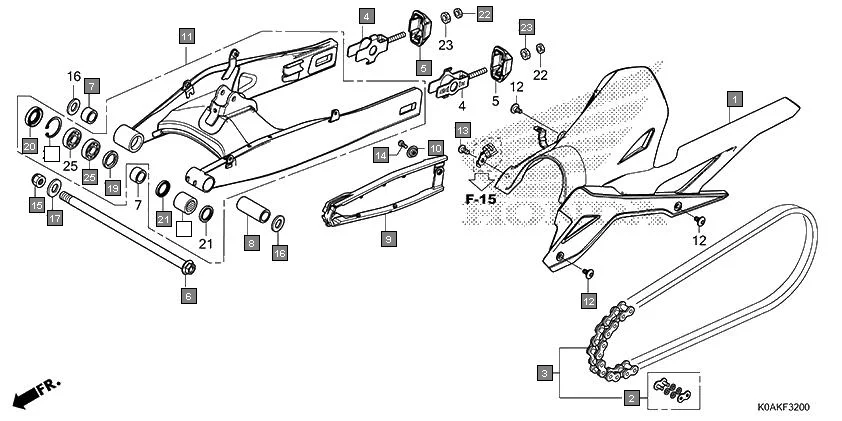

F-32
SWINGARM
27 parts in this assembly
Assembly Diagram
Ref #11
Supported Vehicles3
Related Parts
40510-K98-E00
CASE, DRIVE CHAIN
40531-K87-A01
JOINT, DRIVE CHAIN(RK)
40545-KYJ-902
JOINT, DRIVE CHAIN(DAIDO)
40540-K87-A02
CHAIN, DRIVE(RK) (RK520KLO2-120LJFZ) (STANDARD LINK 106L)
40540-KYJ-902
CHAIN, DRIVE(DAIDO) (DID520VF-120ZB) (STANDARD LINK 106L)
40543-K94-T00
ADJUSTER COMP., CHAIN
